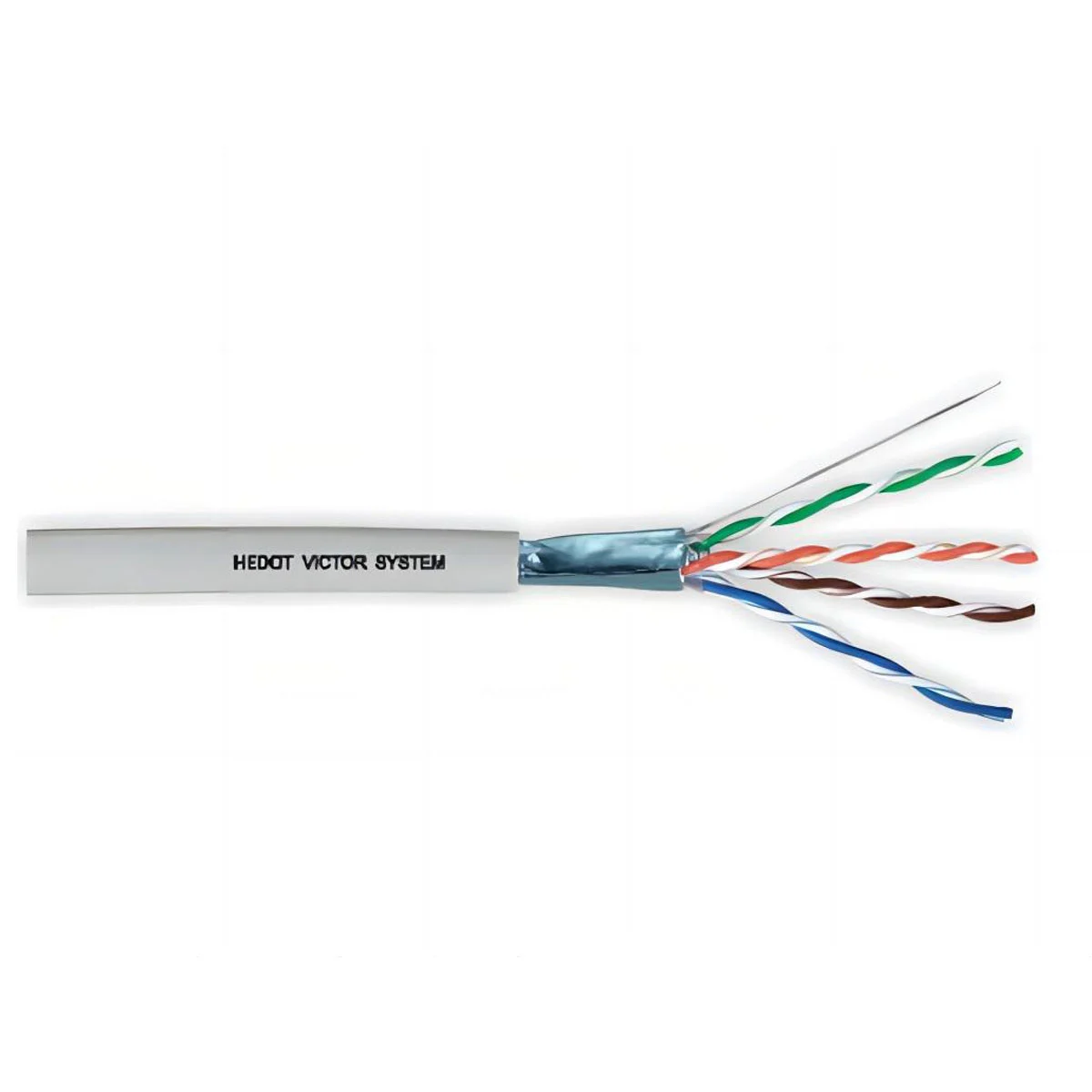

CAT5E FTP cables are enhanced shielded twisted pair cables designed for networking and telecommunications. The "CAT5E" designation indicates their capability to support high-speed data transmission up to 1 Gbps over distances of 100 meters, making them suitable for Ethernet applications.
The "FTP" (Foiled Twisted Pair) refers to the shielding that reduces electromagnetic interference, ensuring more reliable connections in environments with potential signal disruptions. These cables are commonly used in both residential and commercial settings for networking infrastructure.
CAT5E FTP (Foiled Twisted Pair) cables enhance network performance by reducing electromagnetic interference thanks to their foil shielding.
They support data rates up to 1 Gbps and frequencies up to 100 MHz, making them suitable for various applications, including Ethernet connections.

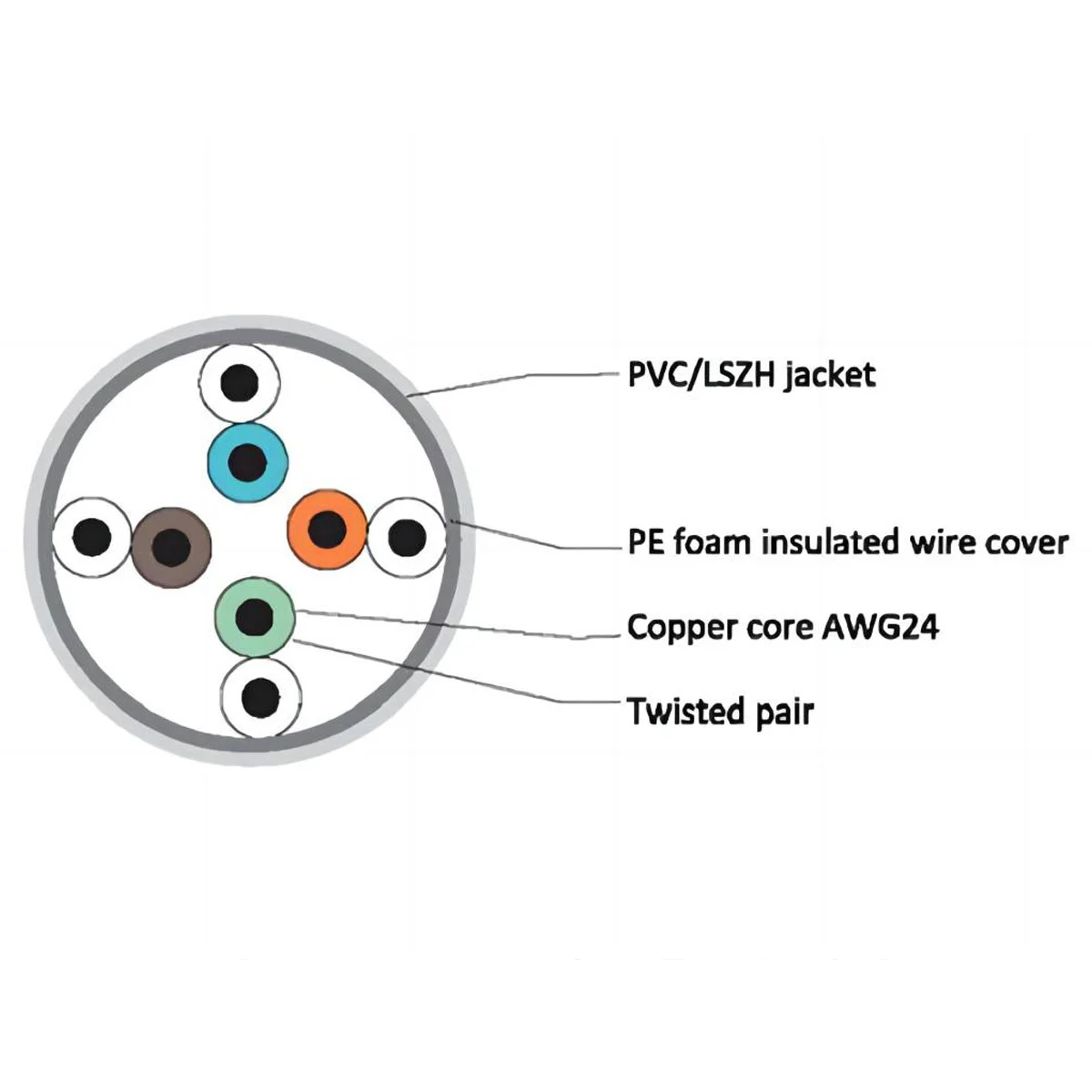

The twisted pair design minimizes crosstalk, improving signal integrity.
They are compatible with standard networking equipment and are widely used in residential and commercial networking environments, ensuring reliable connections over moderate distances.
Ideal for fast-paced networks.
Frequency | RL | Attention | NEXT | ACRF | PSNEXT | ELFEXT | PSELFEXT | DELAY |
(MHz) | (dB) | (dB/100m) | (dB) | (dB) | (dB) | (dB/100m) | (dB/100m) | (ns/100m) |
| 0.772 | 19.4 | 1.8 | 67 | 65 | 64 | 66 | 63 | 575 |
| 1 | 20 | 2 | 65.3 | 63 | 62.3 | 63.8 | 60.8 | 570 |
4 | 23 | 4.1 | 56.3 | 52 | 53.3 | 51.7 | 48.7 | 552 |
8 | 25 | 5.8 | 51.8 | 46 | 48.8 | 45.7 | 42.7 | 546.7 |
10 | 25 | 6.5 | 50.3 | 44 | 47.3 | 43.8 | 40.8 | 545.4 |
16 | 25 | 8.2 | 47.3 | 39 | 44.2 | 39.7 | 36.7 | 543 |
20 | 25 | 9.3 | 45.8 | 37 | 42.8 | 37.7 | 34.7 | 542 |
25 | 24.3 | 10.4 | 44.3 | 34 | 41.3 | 35.8 | 32.8 | 541.2 |
31.25 | 23.6 | 11.7 | 42.9 | 31 | 39.9 | 33.9 | 30.9 | 540.4 |
62.5 | 21.5 | 17 | 38.4 | 21 | 35.4 | 27.8 | 24.8 | 538.6 |
100 | 20.1 | 22 | 35.3 | 13 | 32.3 | 23.8 | 20.8 | 537.6 |
