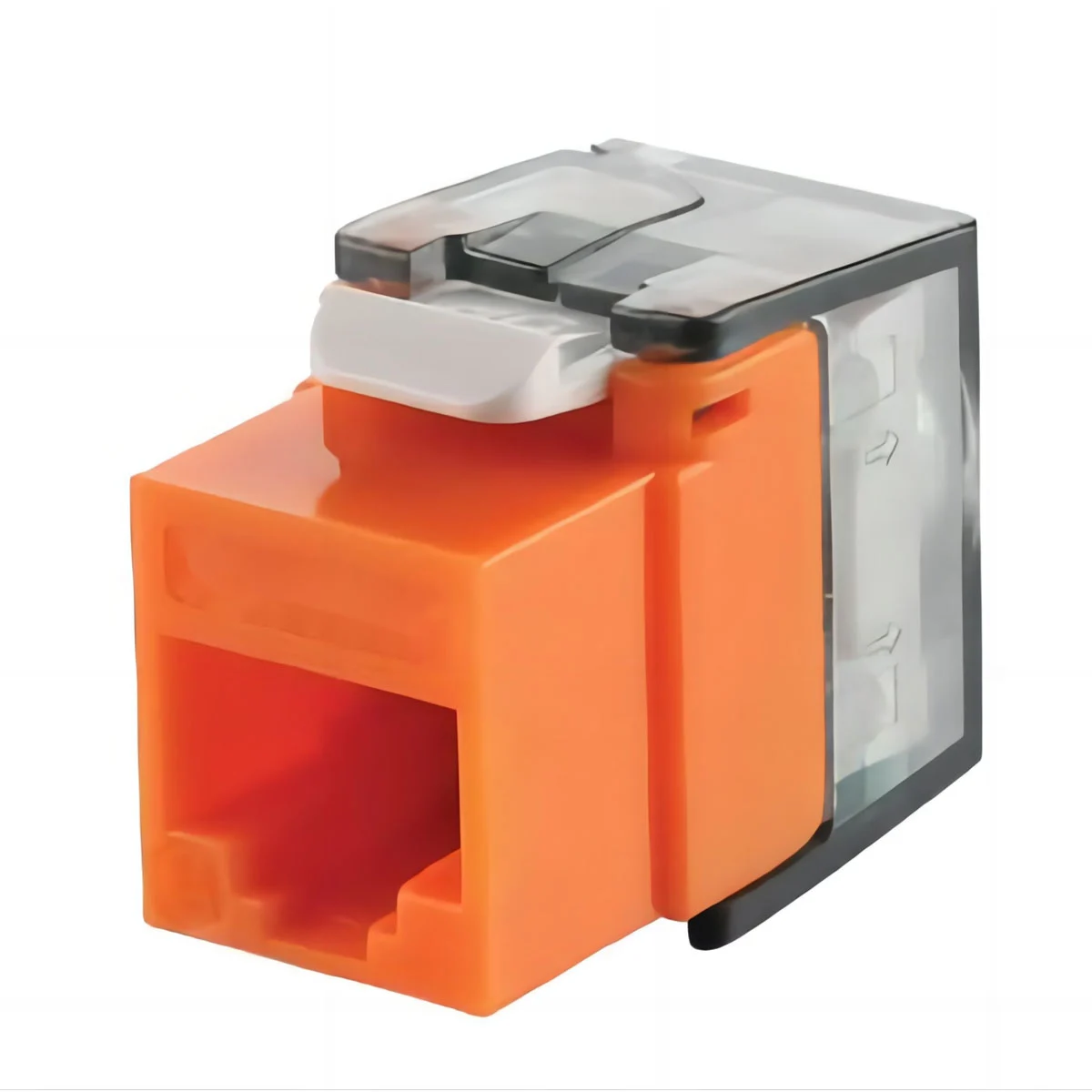

CAT6A UTP Keystone Jack are high-performance connectors designed for unshielded twisted pair (UTP) cabling, optimizing data transmission up to 10 Gbps over distances of 100 meters. These jacks feature a robust construction for durability and come with easy-to-terminate designs, suitable for both professional and DIY installations.
With compatibility for standard RJ45 ports, they ensure seamless integration into existing networks. Ideal for high-speed networking applications, CAT6A UTP Modular Jacks enhance connectivity and reduce crosstalk for reliable performance.
CAT6A UTP Keystone Jack are designed for high-performance networking, supporting data rates up to 10 Gbps over distances up to 100 meters.
These jacks feature 8-position 8-contact (8P8C) configurations for seamless connectivity, with superior shielding to reduce crosstalk and interference.
They are compatible with standard CAT6 cables and offer tool-less installation for easy setup.
Durable construction ensures long-lasting performance, while color-coded wiring helps simplify connections.
Ideal for structured cabling in commercial and residential applications.
1.Mechanical Characteristics
Module connector.
RJ45 8 pin connector: MeetFCC68,subdivision F, IEC-60603-7.
Material: Phosphor bronze, 100um nickel coating, 50um gold coating.
IDC connector: Can connect conductor in specification 22-26AWG.
Diameter of conductor insulation: 0.70-1.40mm.
Material: phosphor bronze with nickel coating.
Main part and cover material of IDC: fireproof, meet UL94V-0,plastic.
2.Application
Be suitable for all CAT6A and EA level channels.
Transmit digital and modular voice data and video signal on the network.
3.Physical Characteristics
Gold pin: phosphor bronze.
IDC terminal: phosphor bronze,connect conductor 22-26AWG.
Interface times between plug and socket≥1500.
Connect times of wire end≥300.
Main part of module: flame retardant polycarbonate UL94V-0, white, red, black, green, blue.
Protective cover: flame retardant polycarbonate UL94V-0.
Operating temperature: -40℃~70℃.
4.Electrical Characteristics
Direct current resistance ≤300MΩ.
Contact resistance≤20MΩ.
Withstand voltage resistance 1000V(AC750V) 1min none breakdown, none flashover Insulation resistance≥1000MΩ.
