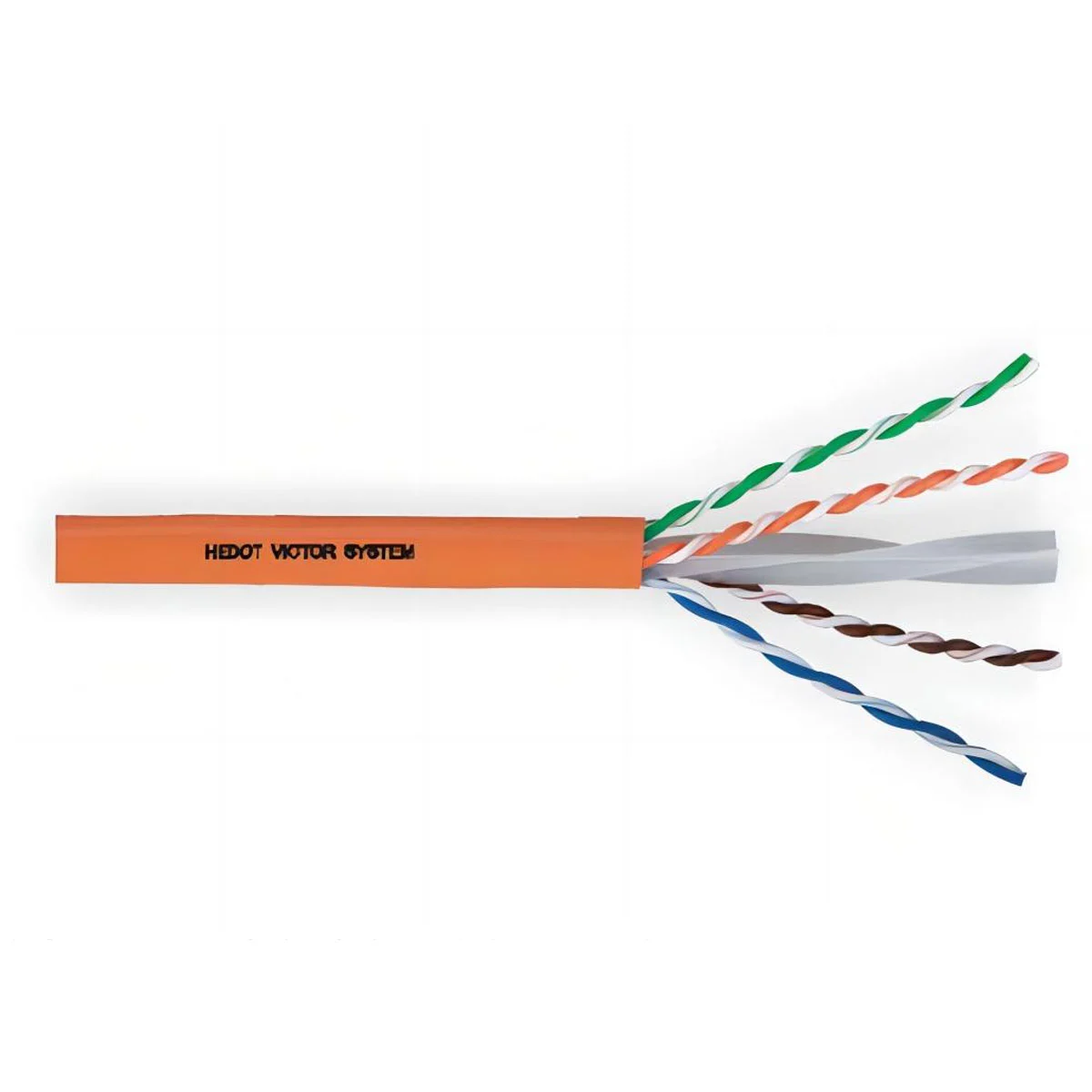

CAT6A UTP (Unshielded Twisted Pair) cables are high-performance networking cables designed for 10 Gigabit Ethernet and advanced data transmission up to 500 MHz over distances of up to 100 meters. These cables enhance crosstalk and noise reduction through tighter twists in the wire pairs.
With a robust construction, CAT6A UTP cables are ideal for high-bandwidth applications, providing improved performance in densely populated networks. They are widely used in data centers, corporate networks, and high-speed internet installations.
CAT6A UTP (Unshielded Twisted Pair) cables support high-speed data transmission up to 10 Gbps over distances of up to 100 meters.
They feature enhanced shielding to reduce crosstalk and electromagnetic interference, providing superior performance in high-density environments.
With a bandwidth of 500 MHz, they efficiently handle data-heavy applications.
CAT6A cables are backward compatible with CAT6 and CAT5e standards, making them a versatile choice for networking in both residential and commercial settings, ensuring future-proof connectivity.
Frequency | Attention | NEXT | PSNEXT | ACRF | PSACRF | PSAACRF | PSANEXT | RL(dB) |
(MHz) | (dB/100m) | (dB) | (dB) | (dB) | (dB) | (dB) | (dB) | Solid Stranded |
1.0 | 2.1 | 74.3 | 72.3 | 67.8 | 64.8 | 67.0 | 67.0 | 20.0 20.0 |
4.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 66.2 | 67.0 | 23.0 23.0 |
8.0 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 60.1 | 67.0 | 24.5 24.5 |
10.0 | 5.9 | 59.3 | 57.3 | 47.8 | 44.8 | 58.2 | 67.0 | 25.0 25.0 |
16.0 | 7.5 | 56.2 | 54.2 | 43.7 | 40.7 | 54.1 | 67.0 | 25.0 25.0 |
20.0 | 8.4 | 54.8 | 52.8 | 41.8 | 38.8 | 52.2 | 67.0 | 25.0 25.0 |
25.0 | 9.6 | 53.3 | 51.3 | 39.8 | 36.8 | 50.2 | 67.0 | 24.3 24.2 |
31.25 | 10.5 | 51.9 | 49.9 | 37.9 | 34.9 | 48.3 | 67.0 | 23.6 23.3 |
62.5 | 15.0 | 47.4 | 45.4 | 31.9 | 28.9 | 42.3 | 656 | 21.5 20.7 |
100.0 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 38.2 | 62.5 | 20.1 19.0 |
250.0 | 27.6 | 39.8 | 37.8 | 21.8 | 18.8 | 30.2 | 58.0 | 18.0 16.4 |
200.0 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 30.2 | 56.5 | 17.3 15.6 |
300.0 | 34.3 | 37.1 | 35.1 | 18.3 | 15.3 | 28.7 | 55.3 | 16.8 14.9 |
400.0 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 26.2 | 53.5 | 15.9 13.8 |
500.0 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 24.2 | 52.0 | 15.2 13.0 |
