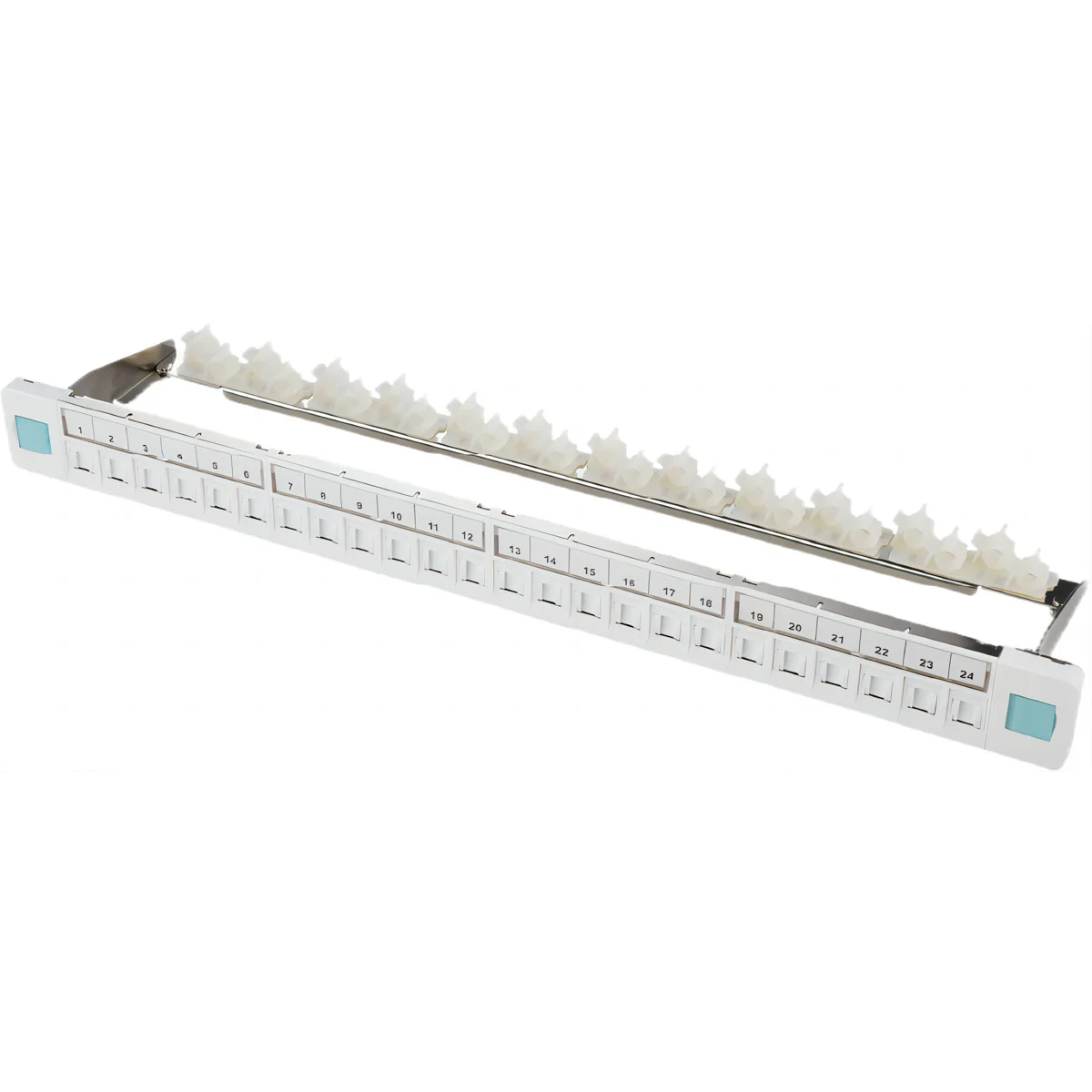

A CAT5E UTP patch panel is a networking device that organizes and manages Ethernet connections. Designed for unshielded twisted pair (UTP) cables, it features multiple ports for easy cable termination, facilitating efficient network structure.
Typically used in data centers and telecommunications rooms, this patch panel enhances cable management, reduces clutter, and simplifies troubleshooting and maintenance. It supports high-speed data transfer rates up to 1 Gbps, making it suitable for various applications, including VoIP and broadband internet services.
A CAT5E UTP patch panel facilitates organized network management by connecting multiple Ethernet cables to network devices.
Key features include support for up to 1000Mbps data transmission, 100MHz bandwidth, and T568A/B wiring standards for flexibility.
Its sturdy metal frame ensures durability, while modular design allows easy installation and maintenance.
Typically rack-mountable, it optimizes space in server rooms.
Color-coded ports simplify cable organization, aiding in troubleshooting and enhancing overall network performance.
Ideal for structured cabling systems in commercial settings.
Frequency | IL | NEXT | FEXT | RL |
(MHz) | (dB) | (dB) | (dB) | (dB) |
1.0 | 0.1 | 65.0 | 65.0 | 30.0 |
4.0 | 0.1 | 65.0 | 63.1 | 30.0 |
8.0 | 0.1 | 64.9 | 57.0 | 30.0 |
10.0 | 0.1 | 63.0 | 55.1 | 30.0 |
16.0 | 0.2 | 58.9 | 51.0 | 30.0 |
20.0 | 0.2 | 57.0 | 49.1 | 30.0 |
25.0 | 0.2 | 55.0 | 47.1 | 30.0 |
31.3 | 0.2 | 53.1 | 45.2 | 28.1 |
62.5 | 0.3 | 47.1 | 39.2 | 28.1 |
100.0 | 0.4 | 43.0 | 35.1 | 18.0 |
