CAT6A FTP Modular Jacks are high-performance connectors designed for Ethernet networking, supporting data rates up to 10 Gbps over a distance of 100 meters. Featuring Foiled Twisted Pair (FTP) construction, they offer enhanced protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable signal integrity.
These jacks are compatible with standard network installations and are ideal for use in data centers, offices, and high-bandwidth applications. Easy to install, they provide a secure and efficient connection solution for modern networking needs.

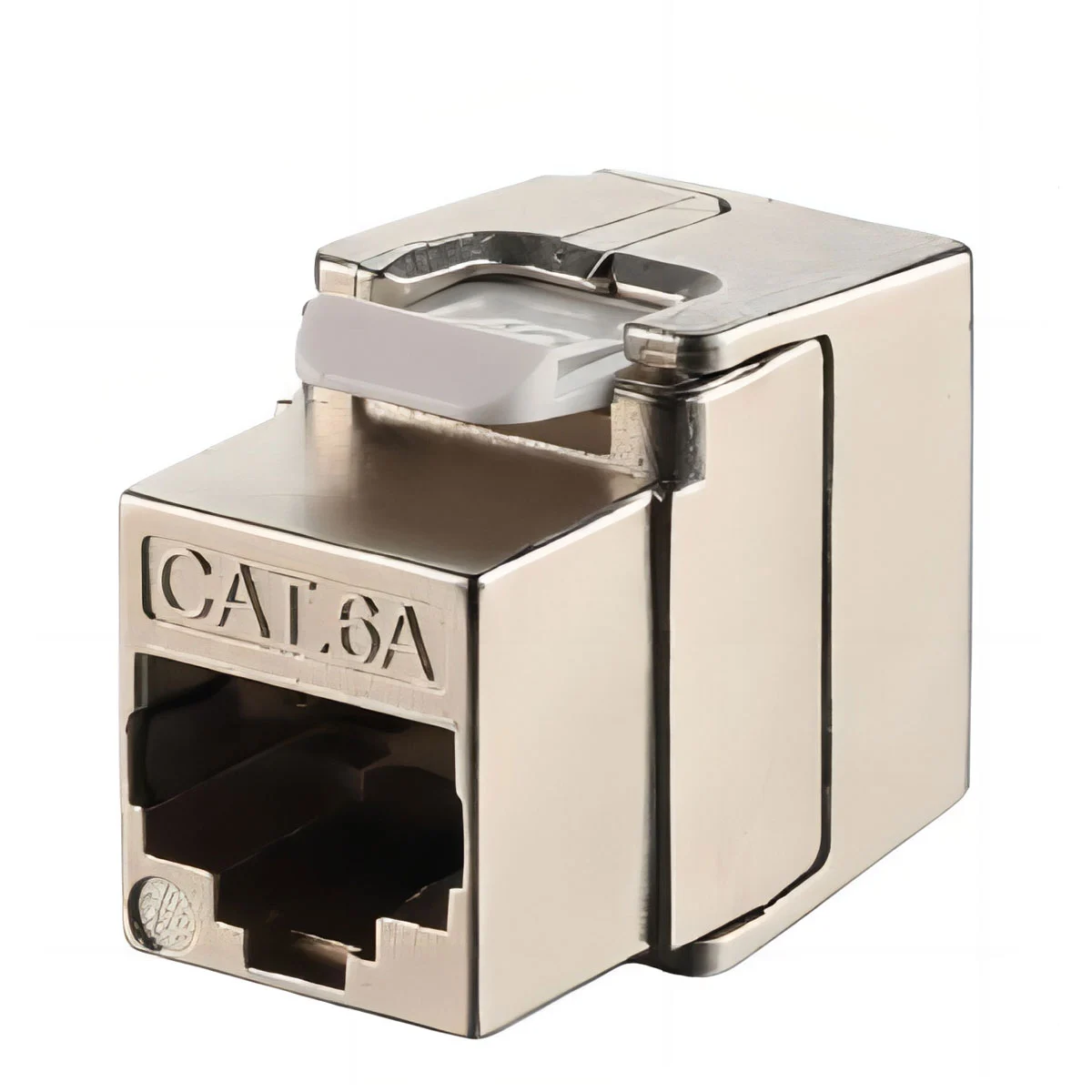

CAT6A FTP Keystone Jack are designed for high-performance networking, supporting up to 10Gbps data transmission over long distances.
They feature shielded twisted pairs for enhanced immunity to crosstalk and external interference.
These jacks typically have durable plastic housings and gold-plated contacts for improved conductivity.
Easy to install, they are compatible with standard keystone wall plates and patch panels.
Ideal for environments requiring high bandwidth and reliability, such as data centers and enterprise networks.
1.Mechanical Characteristics
Modular connector.
RJ45 8 pin connector: Meet FCC68, subdivision F, IEC-60603-7.
Material: Phosphor bronze, 100um nickel coating, 50um gold coating.
IDC connector: Can connect conductor 22-26AWG.
Diameter of conductor insulation: 0.70-1.40mm.
Material: phosphor bronze with nickel coating.
Main part and cover material of IDC: fireproof, meet UL94V-0,plastic.
2.Physical Characteristics
Gold pin: phosphor bronze.
IDC terminal: phosphor bronze, connect conductor 22-26AWG.
Shielded shell: zinc alloy.
Interface times between plug and socket≥1500.
Connect times of wire end≥300.
Main part of module: flame retardant polycarbonate UL94V-0, white, red, black, green, blue.
Protective cover: flame retardant polycarbonate UL94V-0.
Operating temperature: -40℃~70℃.
