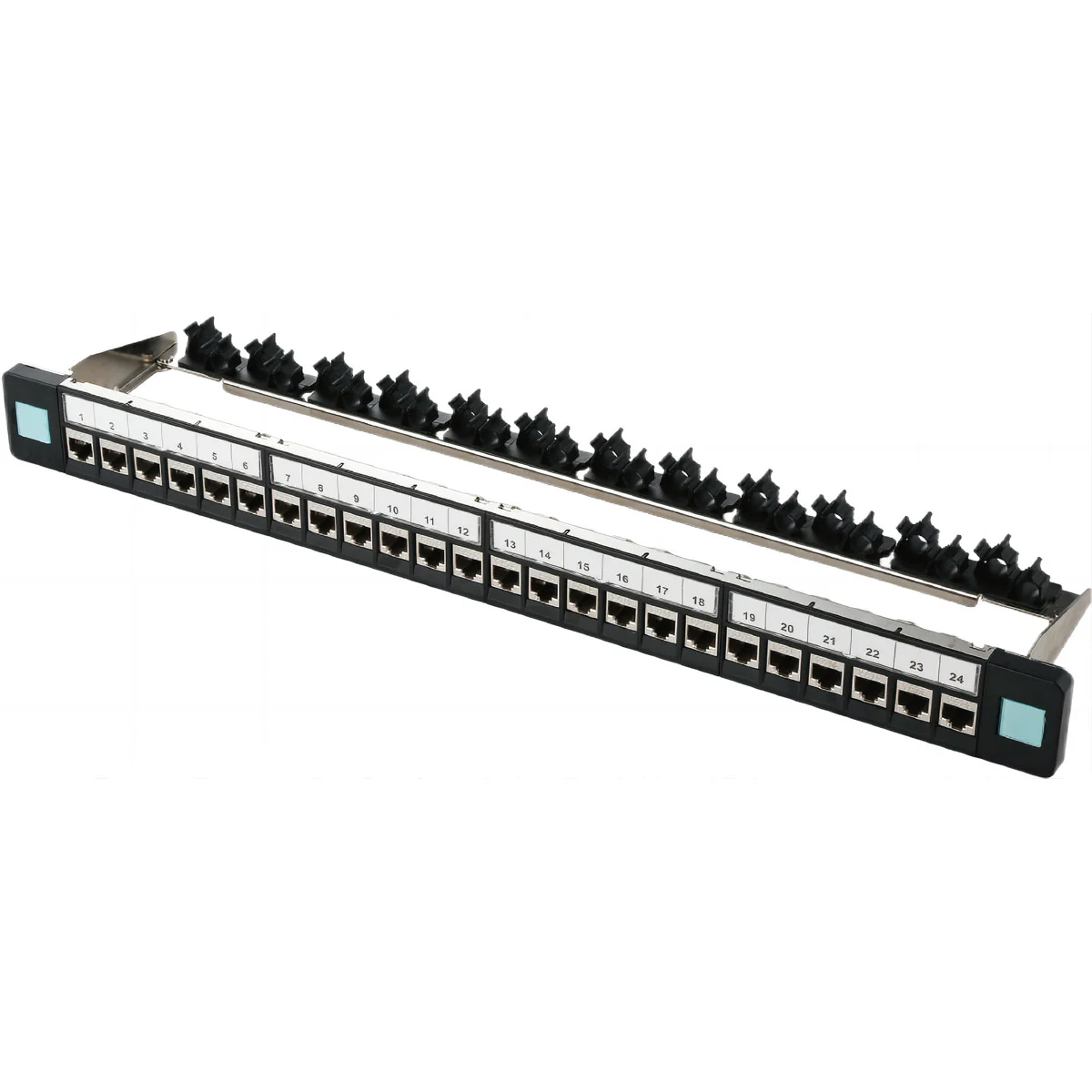

The CAT6A FTP patch panel is a network management device designed for structured cabling systems. It supports 10 Gigabit Ethernet speeds, offering superior performance with reduced crosstalk and enhanced shielding due to its Foil Shielded Twisted Pair (FTP) design. Typically mounted in a rack or cabinet, it organizes and connects network cables for easy access and maintenance.
The panel usually features labeled ports for simplified identification and enhanced cable management, ensuring an efficient and reliable networking environment.
A CAT6A FTP patch panel is designed for high-speed network installations, supporting 10 Gigabit Ethernet over distances up to 100 meters.
It features shielded twisted pairs (FTP) for enhanced protection against electromagnetic interference (EMI).
The panel typically comes in 24 or 48 port configurations, facilitating organized cable management.
Easy-to-use punch-down blocks ensure quick terminations, while labeling options aid in identification.
Its robust construction allows for improved durability and provides optimal performance in data centers or commercial environments.
Frequency (MHz) | Attention (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF (dB) | PSACRF (dB) | PSAACRF (dB) | PSANEXT (dB) | RL(dB) Solid Stranded |
1.0 | 2.1 | 74.9 | 72.3 | 67.7 | 64.8 | 67.3 | 67.0 | 20.0 20.0 |
4.0 | 3.5 | 65.3 | 63.3 | 55.8 | 52.8 | 66.2 | 67.0 | 23.0 23.0 |
8.0 | 5.3 | 60.5 | 58.8 | 49.7 | 46.7 | 60.1 | 67.0 | 24.5 24.5 |
10.0 | 5.9 | 59.3 | 57.4 | 47.8 | 44.8 | 58.2 | 67.0 | 25.0 25.4 |
16.0 | 7.5 | 56.2 | 54.5 | 43.7 | 40.7 | 54.2 | 67.2 | 25.0 25.0 |
20.0 | 8.6 | 54.8 | 52.8 | 41.8 | 38.7 | 52.2 | 67.0 | 25.3 25.0 |
25.0 | 9.6 | 53.3 | 51.3 | 397 | 36.8 | 50.2 | 67.0 | 24.3 24.2 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 48.3 | 67.0 | 23.6 23.3 |
62.5 | 15.0 | 47.4 | 45.4 | 31.9 | 28.9 | 42.3 | 65.6 | 21.5 20.7 |
100.0 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 38.2 | 62.5 | 20.1 19.0 |
250.0 | 27.6 | 39.8 | 37.4 | 21.8 | 18.8 | 30.2 | 58.5 | 18.0 16. |
200.0 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 30.2 | 56.5 | 17.3 15.6 |
300.0 | 34.5 | 37.1 | 35.3 | 18.5 | 15.3 | 28.7 | 55.3 | 16.8 14.9 |
400.0 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 26.2 | 53.5 | 15.9 13.8 |
500.0 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 24.2 | 52.0 | 15.2 13.0 |
