A CAT6A UTP patch panel is a networking device designed to organize and manage Ethernet connections in a structured cabling system. Typically mounted in a server rack, it features multiple ports for connecting CAT6A unshielded twisted pair cables, supporting high-speed data transmission up to 10 Gbps over longer distances.
The panel facilitates easy cable management, enhances network performance, and simplifies troubleshooting. Its robust design ensures durability, making it ideal for data centers and commercial installations requiring reliable connectivity.
A CAT6A UTP patch panel provides high-speed network connectivity with support for 10 Gigabit Ethernet over distances up to 100 meters.
It features unshielded twisted pair (UTP) connections, ensuring reduced crosstalk and interference.

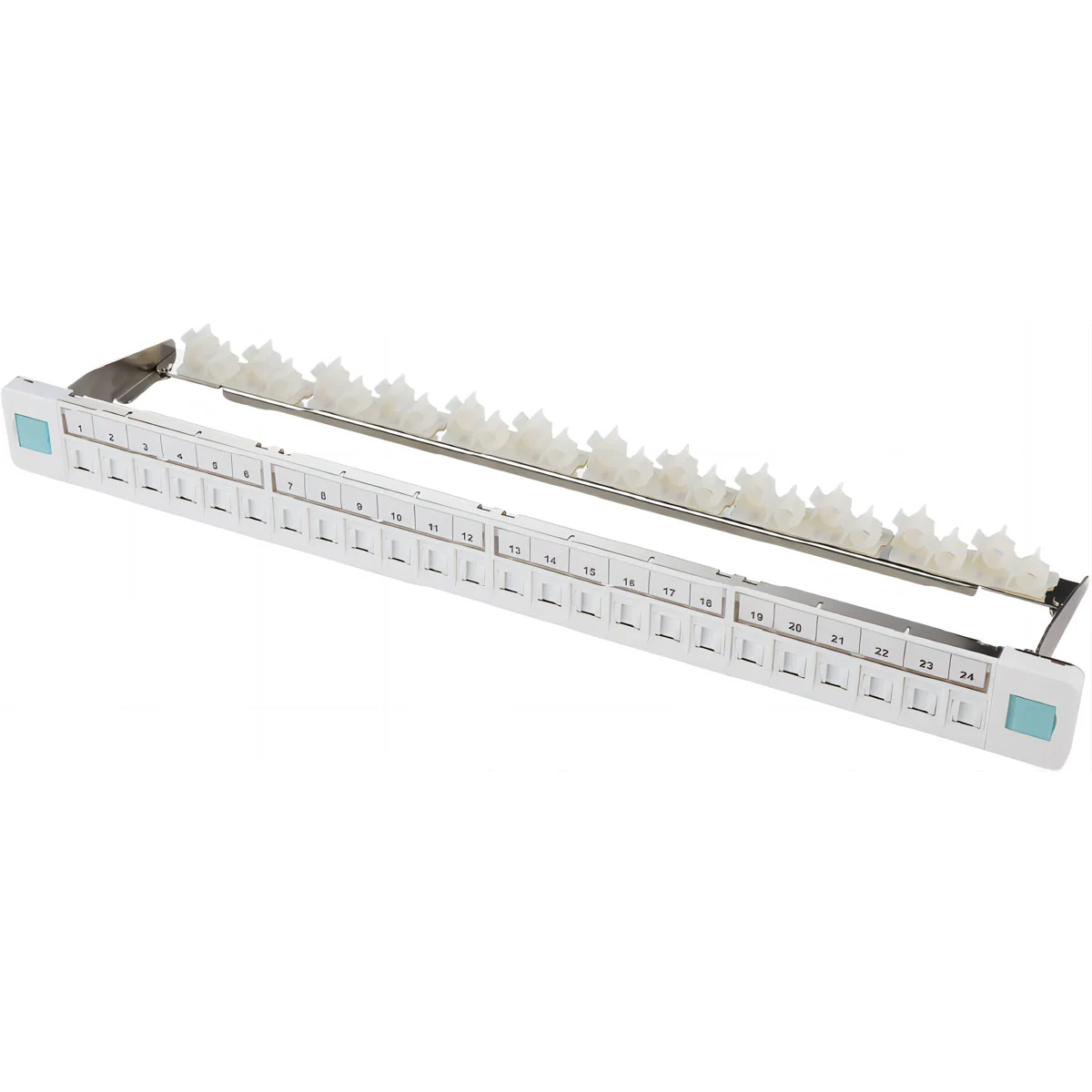

The panel typically includes 24 or 48 ports, is rack-mountable, and facilitates easy cable management.
Keystone jacks enable convenient connectivity, while LED indicators may signal link status. Its sturdy construction enhances durability, making it ideal for data centers and structured cabling systems.
Frequency | Attention | NEXT | PSNEXT | ACRF | PSACRF | PSAACRF | PSANEXT | RL(dB) |
(MHz) | (dB/100m) | (dB) | (dB) | (dB) | (dB) | (dB) | (dB) | Solid Stranded |
1.0 | 2.1 | 74.9 | 72.3 | 67.7 | 64.8 | 67.3 | 67.0 | 20.0 20.0 |
4.0 | 3.5 | 65.3 | 63.3 | 55.8 | 52.8 | 66.2 | 67.0 | 23.0 23.0 |
8.0 | 5.3 | 60.5 | 58.8 | 49.7 | 46.7 | 60.1 | 67.0 | 24.5 24.5 |
10.0 | 5.9 | 59.3 | 57.4 | 47.8 | 44.8 | 58.2 | 67.0 | 25.0 25.4 |
16.0 | 7.5 | 56.2 | 54.5 | 43.7 | 40.7 | 54.2 | 67.2 | 25.0 25.0 |
20.0 | 8.6 | 54.8 | 52.8 | 41.8 | 38.7 | 52.2 | 67.0 | 25.3 25.0 |
25.0 | 9.6 | 53.3 | 51.3 | 39.7 | 36.8 | 50.2 | 67.0 | 24.3 24.2 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 48.3 | 67.0 | 23.6 232 |
62.5 | 15.0 | 47.4 | 45.4 | 31.9 | 28.9 | 42.3 | 65.6 | 21.5 20.7 |
100.0 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 38.2 | 62.5 | 20.1 19.0 |
250.0 | 27.6 | 39.8 | 37.4 | 21.8 | 18.8 | 30.2 | 58.5 | 18.0 16.4 |
200.0 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 30.2 | 56.5 | 17.3 156 |
300.0 | 34.5 | 37.1 | 35.3 | 18.5 | 15.3 | 28.7 | 55.3 | 16.8 14.9 |
400.0 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 26.2 | 53.5 | 15.9 13.8 |
500.0 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 24.2 | 52.0 | 15.2 13.0 |
