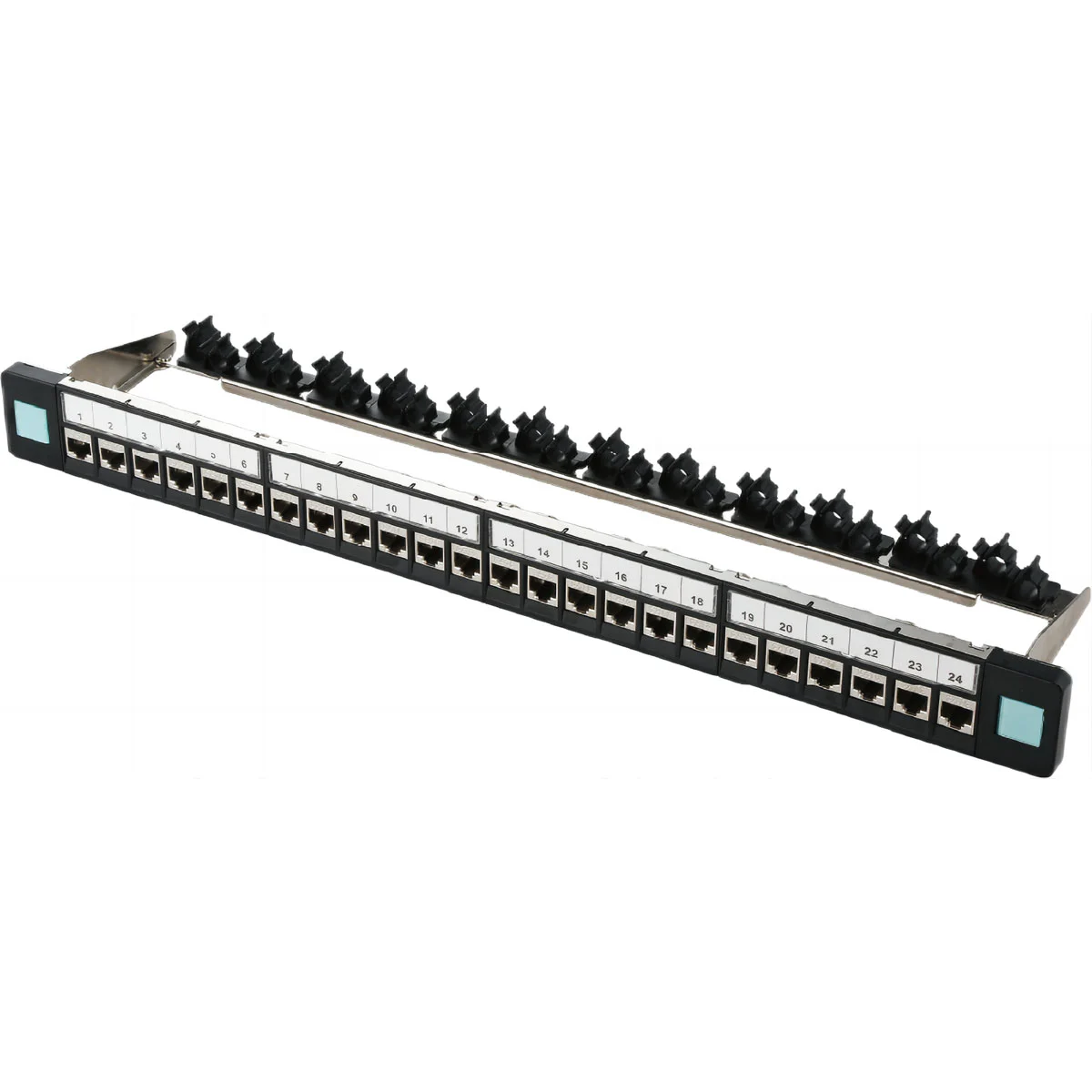

A CAT5E FTP patch panel is a vital networking component designed for structured cabling systems. It features an integrated foil shield, enhancing protection against electromagnetic interference, ensuring reliable data transmission. Typically housed in a 19-inch rack, it provides multiple ports for connecting CAT5E cables to networking devices, enabling organized cable management.
The patch panel allows easy reconfiguration of network connections, promoting efficient troubleshooting and maintenance. Its robust design and efficient performance make it an essential tool for both commercial and residential networking setups.
A CAT5E FTP patch panel features shielded twisted pairs that reduce electromagnetic interference, ensuring reliable data transmission.
It typically includes 24 or 48 ports for easy organization of network cables, simplified network management, and quick troubleshooting.
The panel is compatible with standard 19-inch racks, has color-coded labeling for simplified port identification, and supports both T568A and T568B wiring schemes.
Constructed for durability, it often includes a metal chassis for enhanced protection and grounding, catering to various networking environments.
Frequency | IL | NEXT | FEXT | RL | |
(MHz) | (dB) | (dB) | (dB) | (dB) | |
1.0 | 0.1 | 65.0 | 65.0 | 30.0 | |
4.0 | 0.1 | 65.0 | 63.1 | 30.0 | |
8.0 | 0.1 | 64.9 | 57.0 | 30.0 | |
10.0 | 0.1 | 63.0 | 55.1 | 30.0 | |
16.0 | 0.2 | 58.9 | 51.0 | 30.0 | |
20.0 | 0.2 | 57.0 | 49.1 | 30.0 | |
25.0 | 0.2 | 55.0 | 47.1 | 30.0 | |
31.3 | 0.2 | 53.1 | 45.2 | 28.1 | |
62.5 | 0.3 | 47.1 | 39.2 | 28.1 | |
| 100.0 | 0.4 | 43.0 | 35.1 | 18.0 | |
