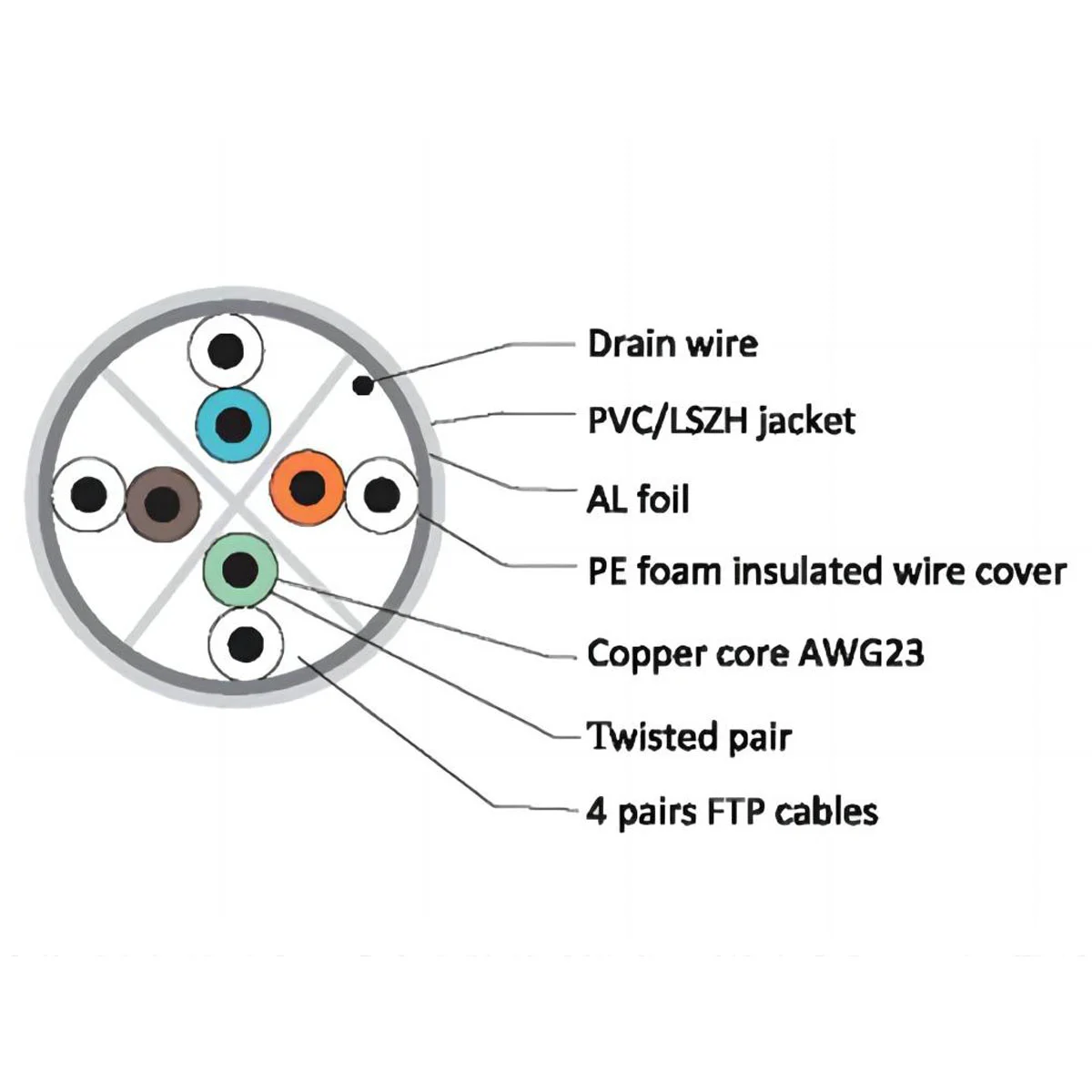

1000hm 4 pairs FTP cable, using 23AWG single-core bare copper as conductor, polyethylene polymer as insulator, aluminium foil and polyester film as shielding, and flame-retardant thermoplastic outer jacket material. The use of cross-section frame structure technology between pairs maintains precise balance and symmetry between pairs as well as the quality of the cable; enables the cable to better achieve shielded CAT6A channel transmission;
CAT6A FTP cables comply with the requirements of the international standard(ISO/IEC), the United States standard(TIA/EIA), the European standard(EN) and the Australian standard;
Exceed the requirements of TIA/EIA 568C.2 Augmented CAT6A, providing up to 500MHz bandwidth applications,
LSZH: stands for "Low Smoke and Halogen Free", low smoke and halogen-free materials to meet the requirements of environmental protection.
Frequency (MHz) | Attention (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF (dB) | PSACRF (dB) | PSAACRF (dB) | PSANEXT (dB) | RL(dB) Solid Stranded |
1.0 | 2.1 | 74.3 | 72.3 | 67.8 | 64.8 | 67.0 | 67.0 | 20.0 20.0 |
4.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 66.2 | 67.0 | 23.0 23.0 |
8.0 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 60.1 | 67.0 | 24.5 24.5 |
10.0 | 5.9 | 59.3 | 57.3 | 47.8 | 44.8 | 58.2 | 67.0 | 25.0 25.0 |
16.0 | 7.5 | 56.2 | 54.2 | 43.7 | 40.7 | 54.1 | 67.0 | 25.0 25.0 |
20.0 | 8.4 | 54.8 | 52.8 | 41.8 | 38.8 | 52.2 | 67.0 | 25.0 25.0 |
25.0 | 9.6 | 53.3 | 51.3 | 39.8 | 36.8 | 50.2 | 67.0 | 24.3 24.2 |
31.25 | 10.5 | 51.9 | 49.9 | 37.9 | 34.9 | 48.3 | 67.0 | 23.6 23.3 |
62.5 | 15.0 | 47.4 | 45.4 | 31.9 | 28.9 | 42.3 | 65.6 | 21.5 20.7 |
100.0 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 38.2 | 62.5 | 20.1 19.0 |
250.0 | 27.6 | 39.8 | 37.8 | 21.8 | 18.8 | 30.2 | 58.0 | 18.0 16.4 |
200.0 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 30.2 | 56.5 | 17.3 15.6 |
300.0 | 34.3 | 37.1 | 35.1 | 18.3 | 15.3 | 28.7 | 55.3 | 16.8 14.9 |
400.0 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 26.2 | 53.5 | 15.9 13.8 |
500.0 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 24.2 | 52.0 | 15.2 13.0 |
