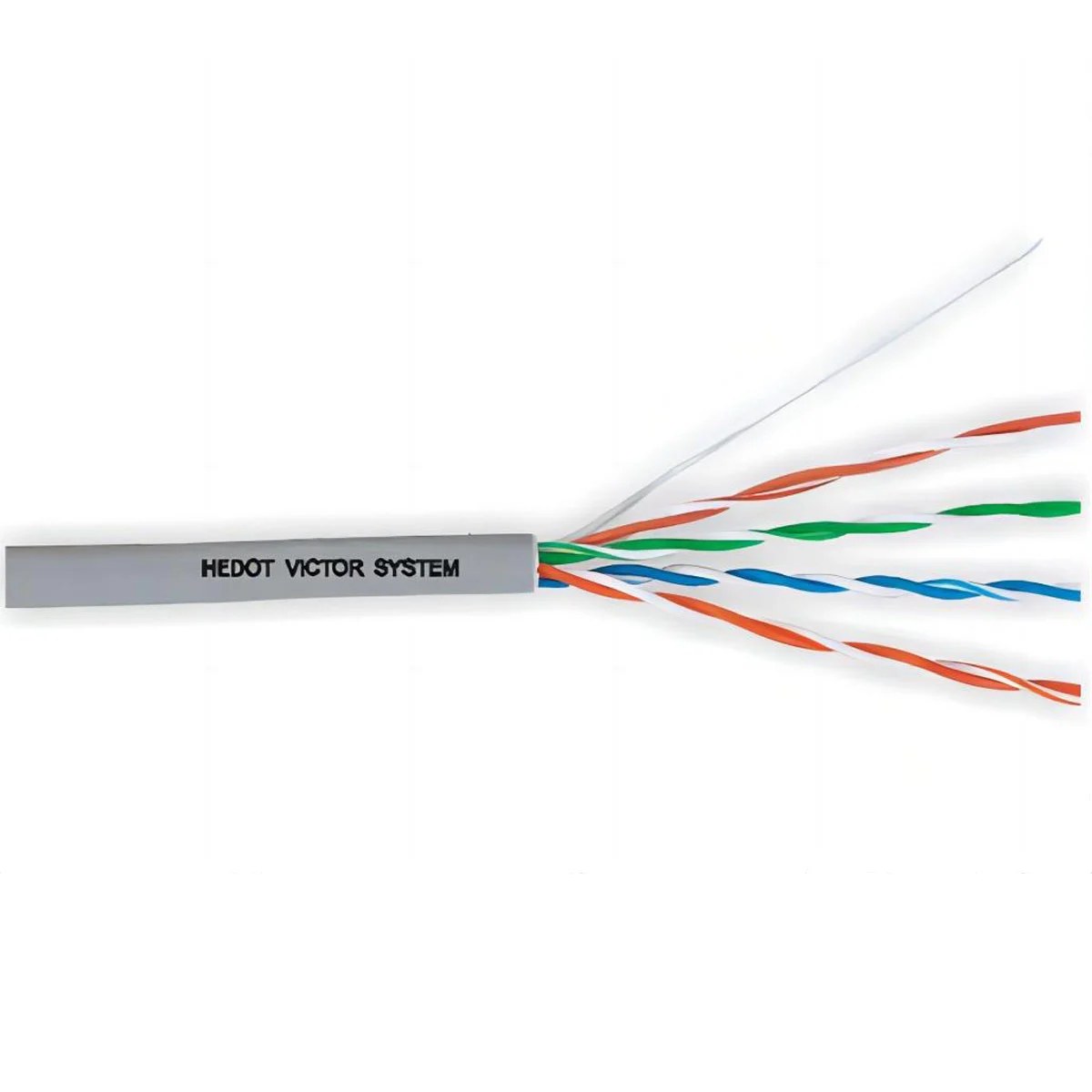

CAT5E UTP (Unshielded Twisted Pair) cables are a type of networking cable designed for high-speed data transmission. They support Ethernet networks at speeds up to 1 Gbps over distances of up to 100 meters.

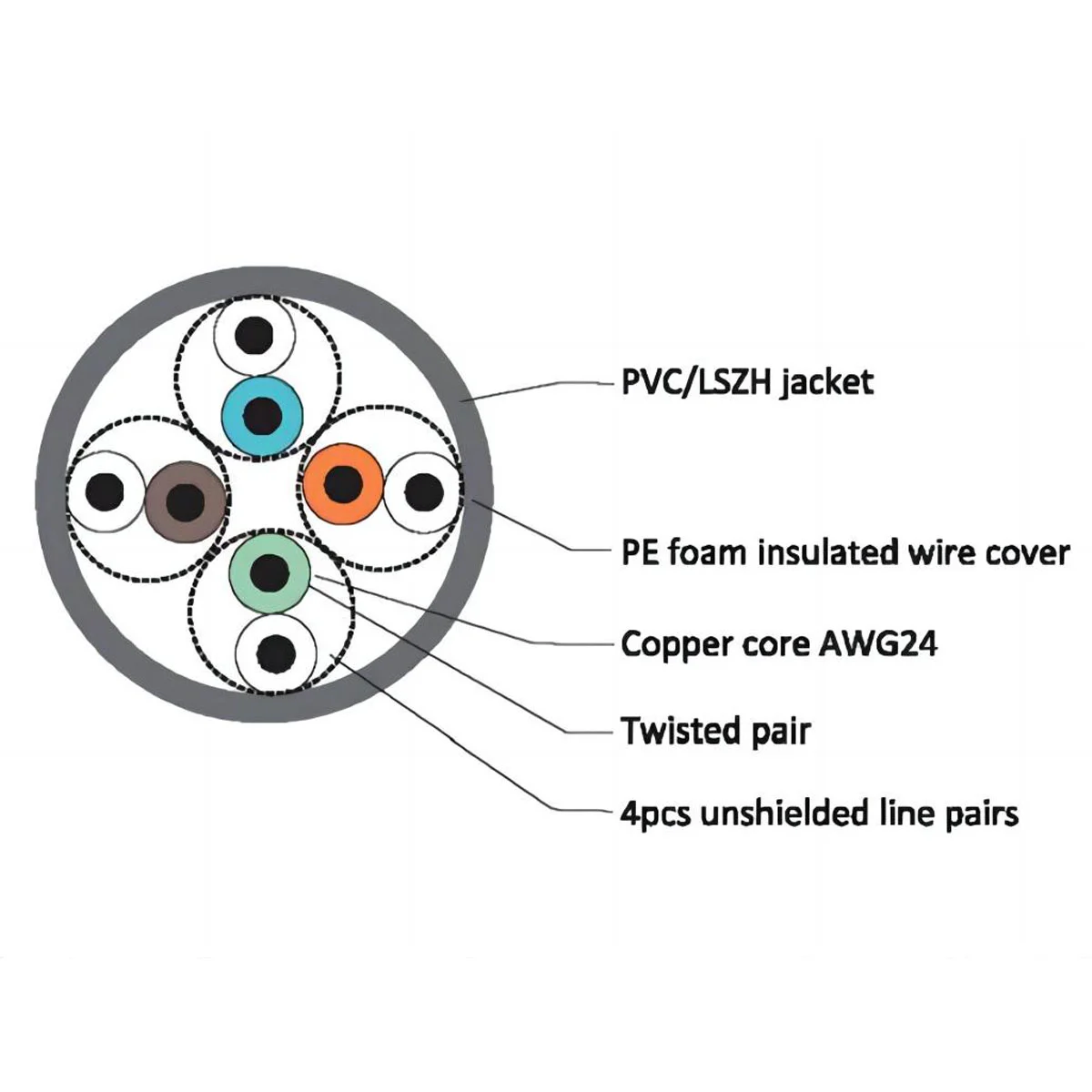

The "E" in CAT5E stands for "enhanced," indicating improved performance and reduced crosstalk compared to standard CAT5 cables. Comprising four pairs of twisted copper wires, CAT5E cables are commonly used in residential and commercial networking applications, providing reliable connectivity for internet and multimedia devices.
CAT5E UTP cables support data transmission speeds up to 1 Gbps and bandwidths of 100 MHz, making them suitable for Ethernet applications.
They feature twisted pairs to reduce electromagnetic interference, enhancing signal quality.
CAT5E cables are backward compatible with CAT5 standards and are commonly used in networking, including voice, video, and data transmission.
They are less expensive and easier to install compared to higher-category cables, making them a popular choice for residential and commercial networks.
Frequency | RL | Attention | NEXT | ACRF | PSNEXT | ELFEXT | PSELFEXT | DELAY |
| (MHz) | (dB) | (dB/100m) | (dB) | (dB) | (dB) | (dB/100m) | (dB/100m) | (ns/100m) |
0.772 | 19.4 | 1.8 | 67 | 65 | 64 | 66 | 63 | 575 |
1 | 20 | 2 | 65.3 | 63 | 62.3 | 63.8 | 60.8 | 570 |
4 | 23 | 4.1 | 56.3 | 52 | 53.3 | 51.7 | 48.7 | 552 |
8 | 25 | 5.8 | 51.8 | 46 | 48.8 | 45.7 | 42.7 | 546.7 |
10 | 25 | 6.5 | 50.3 | 44 | 47.3 | 43.8 | 40.8 | 545.4 |
16 | 25 | 8.2 | 47.3 | 39 | 44.2 | 39.7 | 36.7 | 543 |
20 | 25 | 9.3 | 45.8 | 37 | 42.8 | 37.7 | 34.7 | 542 |
25 | 24.3 | 10.4 | 44.3 | 34 | 41.3 | 35.8 | 32.8 | 541.2 |
31.25 | 23.6 | 11.7 | 42.9 | 31 | 39.9 | 33.9 | 30.9 | 540.4 |
62.5 | 21.5 | 17 | 38.4 | 21 | 35.4 | 27.8 | 24.8 | 538.6 |
100 | 20.1 | 22 | 35.3 | 13 | 32.3 | 23.8 | 20.8 | 537.6 |
