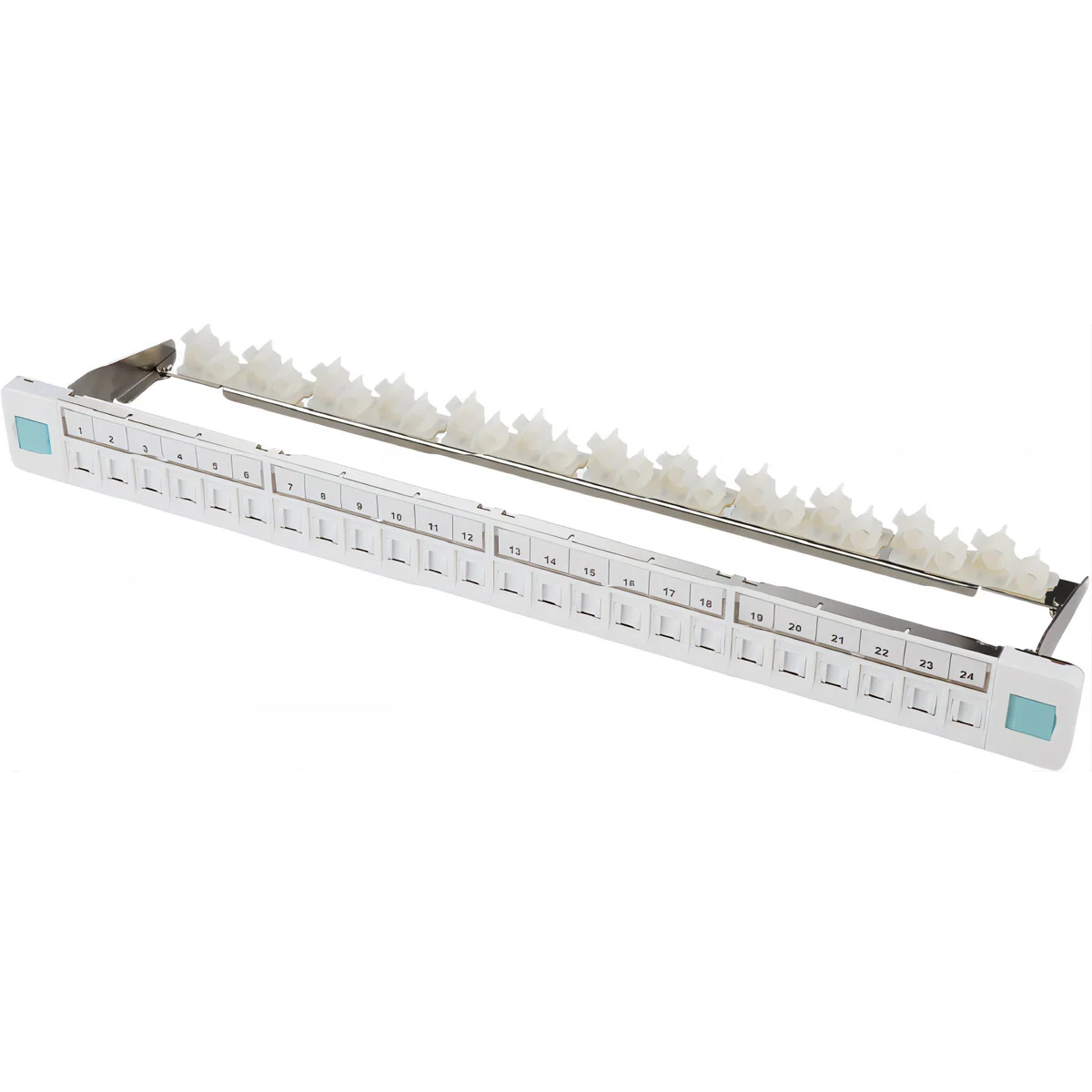

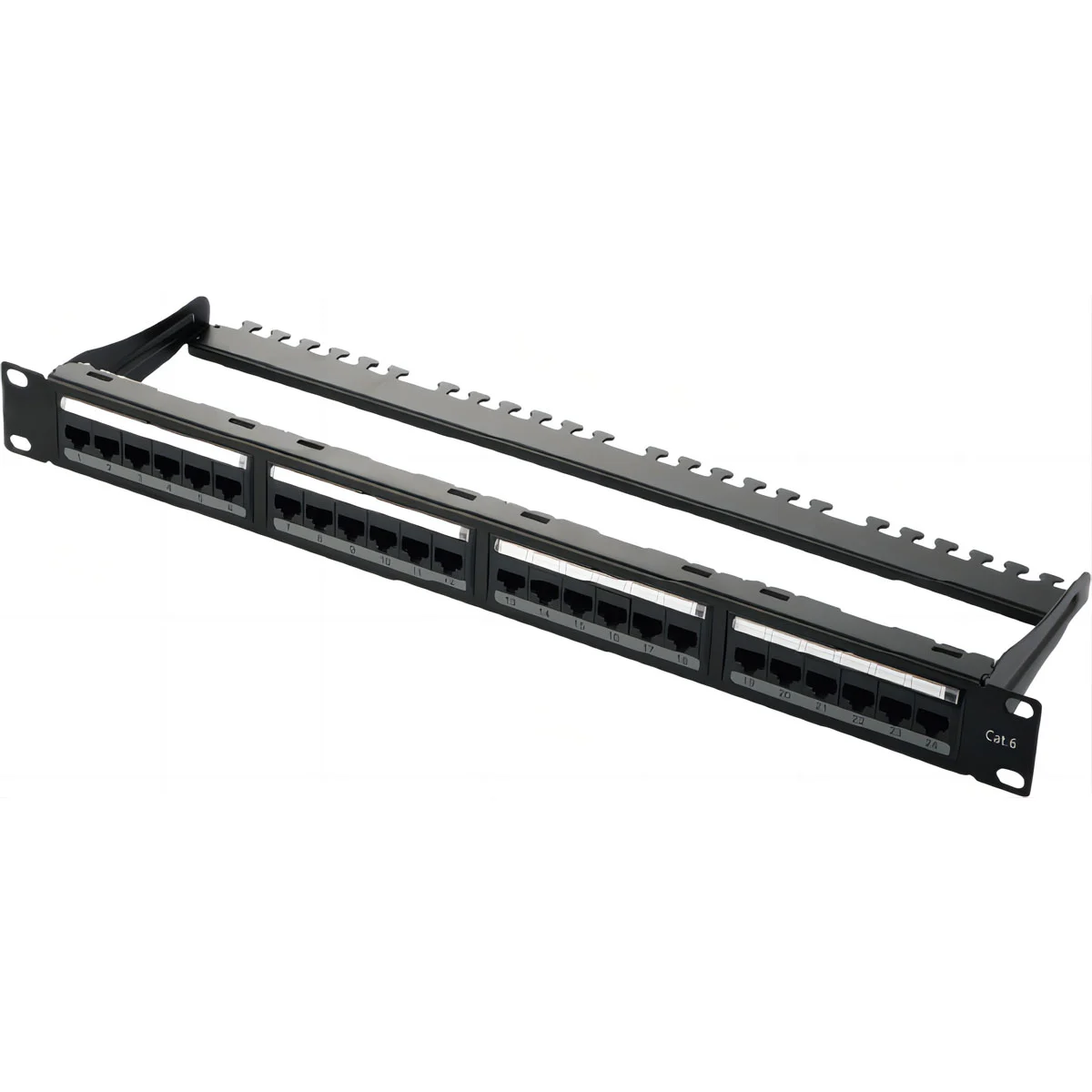

A CAT6 UTP patch panel is a device used in networking to organize and manage Ethernet cables. It features multiple ports for connecting CAT6 unshielded twisted pair cables, allowing for efficient signal transmission and reduced crosstalk.
Typically mounted in data racks or telecommunication closets, it facilitates easy connectivity between network devices, such as switches and routers. Designed for high-speed data transfer, a CAT6 patch panel supports up to 10 Gbps bandwidth for optimal performance in professional environments.
A CAT6 UTP patch panel is designed for high-performance networking connections.
Features include 24 or 48 ports, supporting up to 10 Gbps data rates over short distances.
It typically has an unshielded twisted pair (UTP) design, which helps to reduce crosstalk and interference.
The panel is wall-mountable or rack-mounted, offering easy cable management and organization.
Color-coded ports simplify installations and maintenance, while the durable metal frame ensures longevity.
It's ideal for structured cabling systems in homes and offices.
Frequency | IL | NEXT | FEXT | RL |
(MHz) | (dB) | (dB) | (dB) | (dB) |
1.0 | 0.10 | 75.0 | 75.0 | 30.0 |
4.0 | 0.10 | 75.0 | 71.1 | 30.0 |
8.0 | 0.10 | 75.0 | 65.0 | 30.0 |
10.0 | 0.10 | 74.0 | 63.1 | 30.0 |
16.0 | 0.10 | 69.9 | 59.0 | 30.0 |
20.0 | 0.10 | 680 | 57.1 | 30.0 |
25.0 | 0.10 | 66.0 | 55.1 | 30.0 |
31.25 | 0.11 | 64.1 | 53.2 | 30.0 |
62.5 | 0.16 | 58.1 | 47.2 | 28.1 |
100.0 | 0.20 | 54.0 | 43.1 | 24.0 |
200.0 | 0.28 | 48.0 | 37.1 | 18.0 |
| 250.0 | 0.32 | 46.0 | 35.1 | 16.0 |
