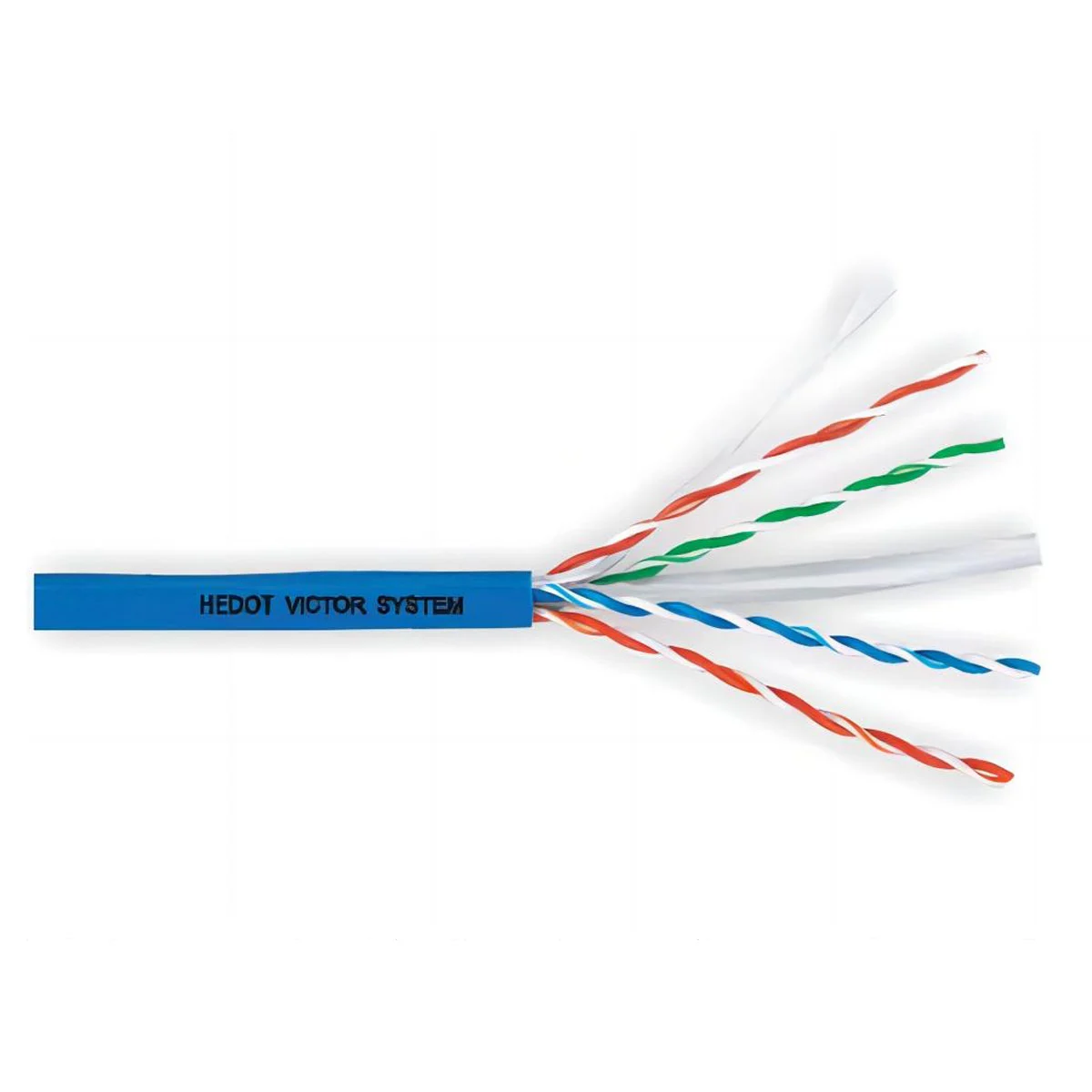

CAT6 UTP (Unshielded Twisted Pair) cables are advanced networking cables designed for high-speed data transmission. They support Gigabit Ethernet and are capable of handling frequencies up to 250 MHz, making them ideal for bandwidth-intensive applications.

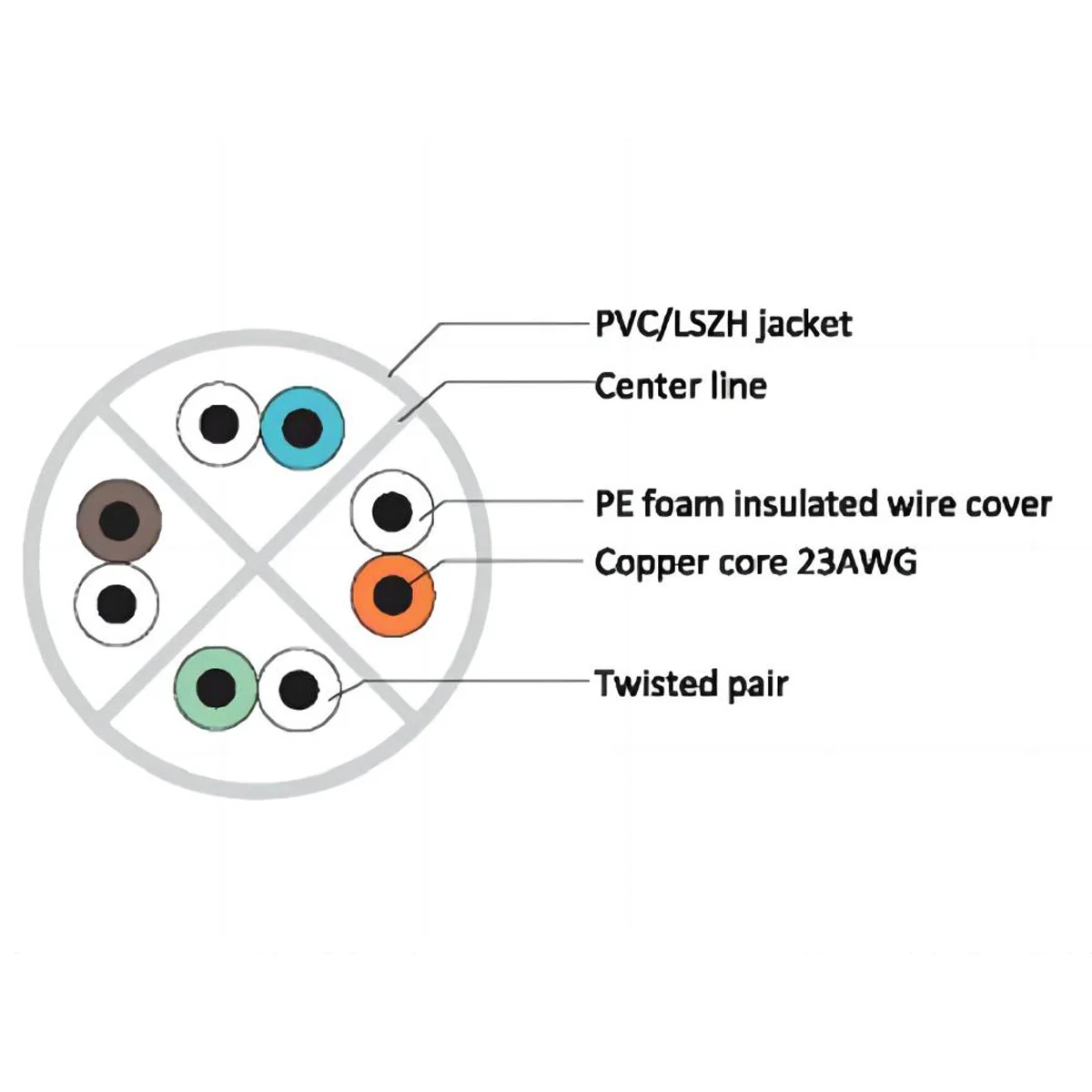

CAT6 UTP cables consist of four twisted pairs of copper wires that reduce electromagnetic interference, ensuring reliable performance over longer distances.
Typically used in commercial and residential networks, they offer improved performance over previous cable types, making them essential for modern networking needs.
CAT6 UTP (Unshielded Twisted Pair) cables are designed for high-speed networking and data transmission.
They support bandwidths of up to 250 MHz and facilitate data rates of 1 Gbps over distances up to 100 meters.
The cable's twisted pair design reduces crosstalk and interference, ensuring reliable connections.
CAT6 cables are backward compatible with CAT5 and CAT5e standards, making them versatile for various applications.
They are ideal for modern Ethernet networks, including VoIP, video conferencing, and multimedia streaming.
Frequency | RL | Atlention | NEXT | ACRF | PSNEXT | ELFEXT | PSELFEXT | DELAY |
(MHz) | (dB) | (dB/100m) | (dB) | (dB) | (dB) | (dB/100m) | (dB/100m) | (ns/100m) |
1.0 | 20.0 | 2.0 | 79.3 | 77.3 | 77.3 | 72.8 | 69.8 | 570.0 |
4.0 | 23.0 | 3.8 | 70.3 | 66.5 | 68.3 | 60.8 | 57.8 | 552.0 |
8.0 | 24.5 | 5.4 | 65.8 | 60.4 | 63.8 | 54.7 | 51.7 | 546.7 |
10.0 | 25.0 | 6.0 | 64.3 | 58.3 | 62.3 | 52.8 | 49.8 | 545.4 |
16.0 | 25.0 | 7.6 | 61.2 | 53.6 | 59.2 | 48.7 | 45.7 | 543.0 |
20.0 | 25.0 | 8.5 | 59.8 | 51.3 | 57.8 | 46.8 | 43.8 | 542.0 |
25.0 | 24.3 | 9.6 | 58.3 | 48.7 | 56.3 | 44.8 | 41.8 | 541.2 |
31.25 | 23.6 | 10.7 | 56.9 | 46.2 | 54.9 | 42.9 | 39.9 | 540.4 |
62.5 | 21.5 | 15.4 | 52.4 | 37.0 | 50.4 | 36.9 | 33.9 | 538.6 |
100.0 | 20.1 | 19.8 | 49.3 | 29.5 | 47.3 | 32.8 | 19.8 | 537.6 |
155.0 | 18.9 | 24.7 | 46.7 | 22 | 44.7 | 29.3 | 26.3 | 536.9 |
200.0 | 18.0 | 29.0 | 44.8 | 15.8 | 42.8 | 26.8 | 23.8 | 536.5 |
250.0 | 17.3 | 32.8 | 43.0 | 10.2 | 41.3 | 24.8 | 21.8 | 536.3 |
