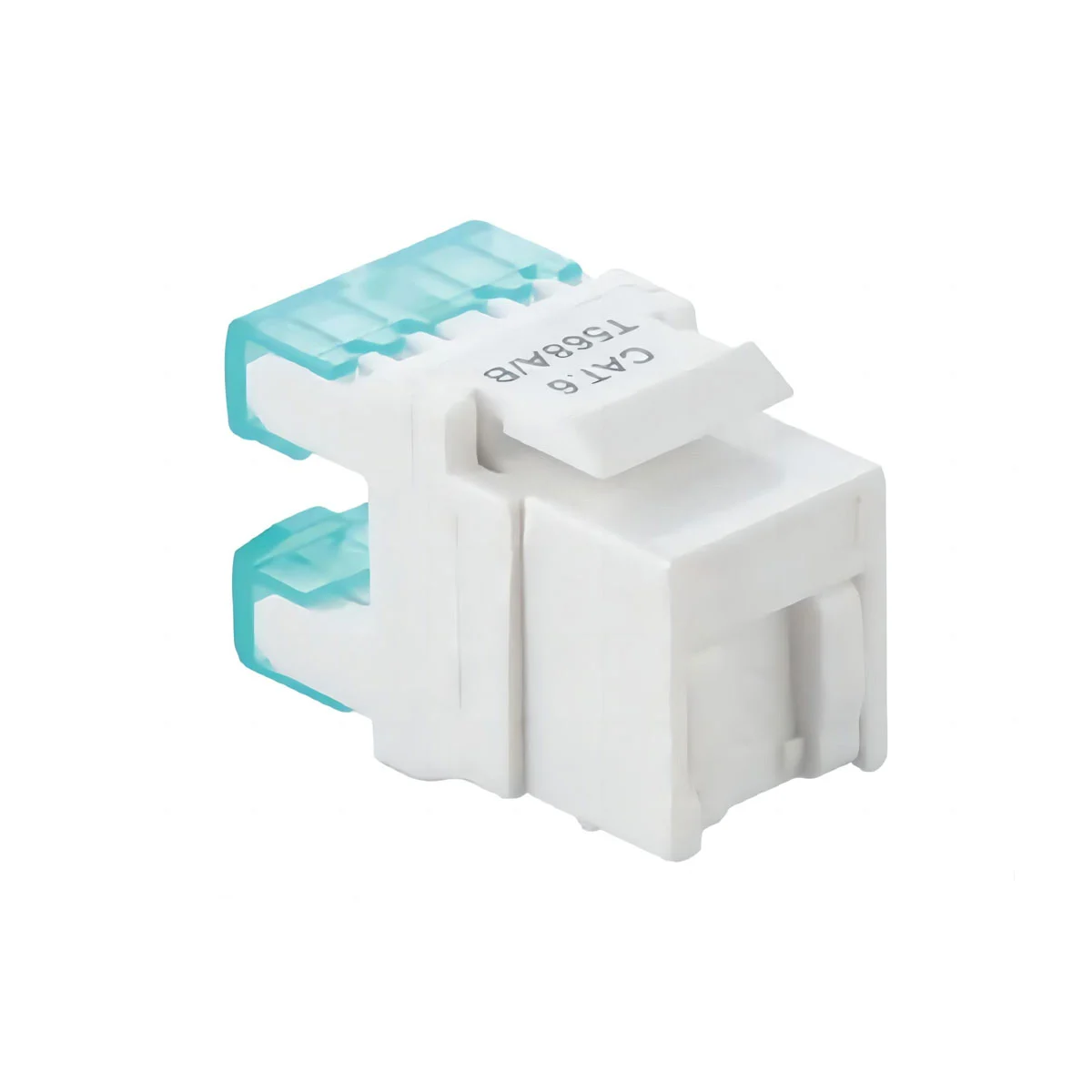

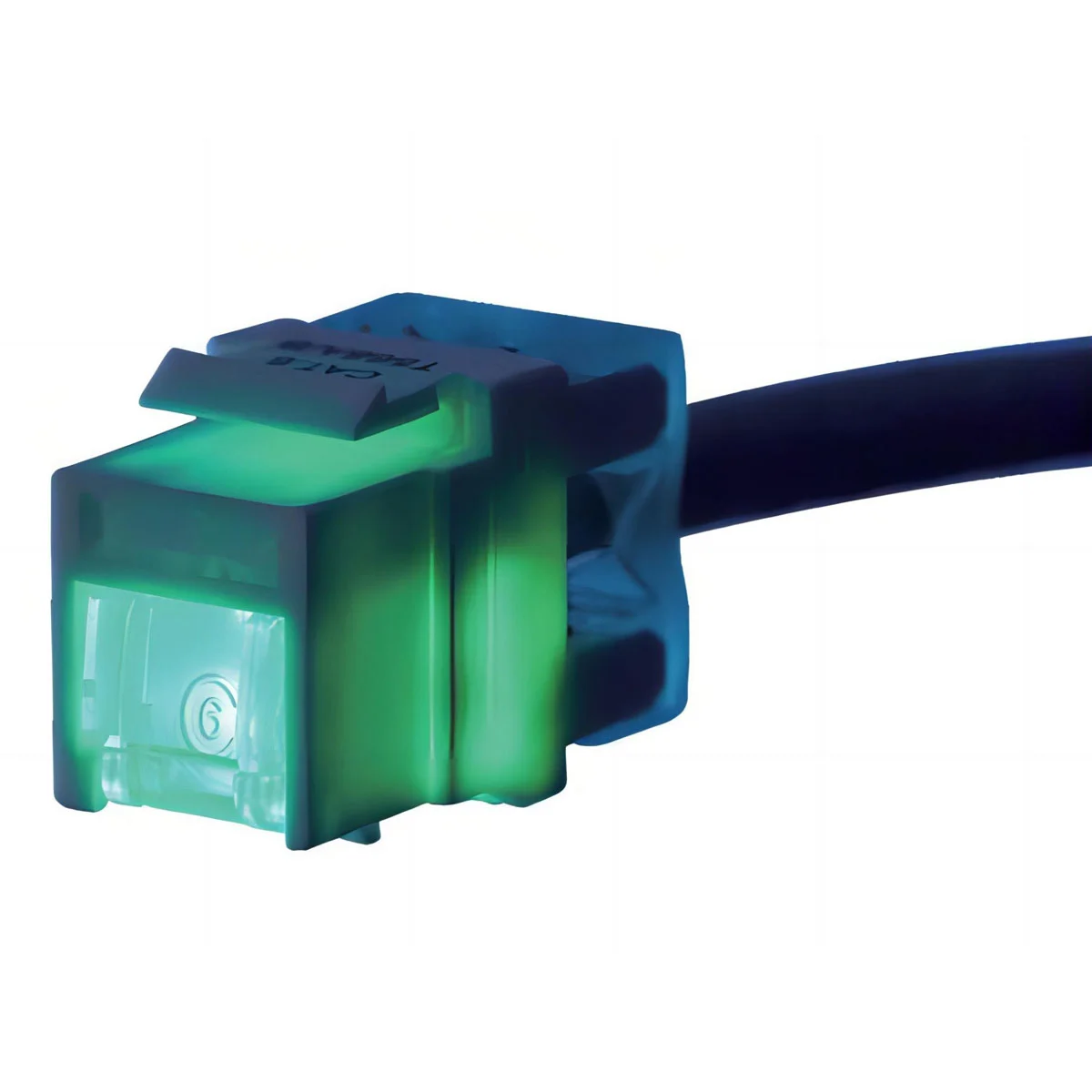

CAT6 UTP Keystone Jack are high-performance connectors designed for Cat6 Ethernet cabling, ensuring reliable data transmission with reduced crosstalk and interference.
These jacks feature a compact design for easy installation in networking environments and comply with TIA/EIA standards. Constructed with durable materials for longevity, they support both voice and data applications, making them ideal for residential and commercial setups.
With color-coded wiring and snap-in functionality, they offer efficient connectivity for enhanced network performance.
CAT6 UTP Keystone Jack provide high-performance connectivity for Ethernet networks, supporting data speeds up to 10 Gbps over 250 MHz.
Designed for unshielded twisted pair (UTP) cabling, these jacks feature a compact design for easy installation in standard wall plates or patch panels.
They offer enhanced performance with reduced crosstalk and interference, ensuring reliable transmission.
Compatible with various housing styles, they are often color-coded for easy identification.
Durable and resistant to wear, CAT6 UTP jacks are ideal for both residential and commercial applications.
Frequency (MHz) | IL (dB) | NEXT (dB) | FEXT (dB) | RL (dB) | |
| 1.0 | 0.10 | 75.0 | 75.0 | 30.0 | |
4.0 | 0.10 | 75.0 | 71.1 | 30.0 | |
8.0 | 0.10 | 75.0 | 65.0 | 30.0 | |
10.0 | 0.10 | 74.0 | 63.1 | 30.0 | |
16.0 | 0.10 | 69.9 | 59.0 | 30.0 | |
20.0 | 0.10 | 68.0 | 57.1 | 30.0 | |
25.0 | 0.10 | 66.0 | 55.1 | 30.0 | |
31.25 | 0.11 | 64.1 | 53.2 | 30.0 | |
62.5 | 0.16 | 58.1 | 47.2 | 28.1 | |
100.0 | 0.20 | 54.0 | 43.1 | 24.0 | |
200.0 | 0.28 | 48.0 | 37.1 | 18.0 | |
250.0 | 0.32 | 46.0 | 35.1 | 16.0 | |
