A patch panel, also known as a patch bay, patch field, or jack field, is a crucial component in network and telecommunications infrastructure. It serves as a central point for managing and organizing cable connections, making it easier to connect, disconnect, and reconfigure circuits.
Multi-fiber, single / multi-mode
low loss, high reliability, optical network connection
polarity conversion cable assembly
Single/multimode SM/MM, low loss
multi-fiber termination to single or duplex termination short-distance breakout cable assembly
Single/multimode SM/MM, low loss
multi-fiber termination to single or duplex termination
middle/short-distance breakout cable

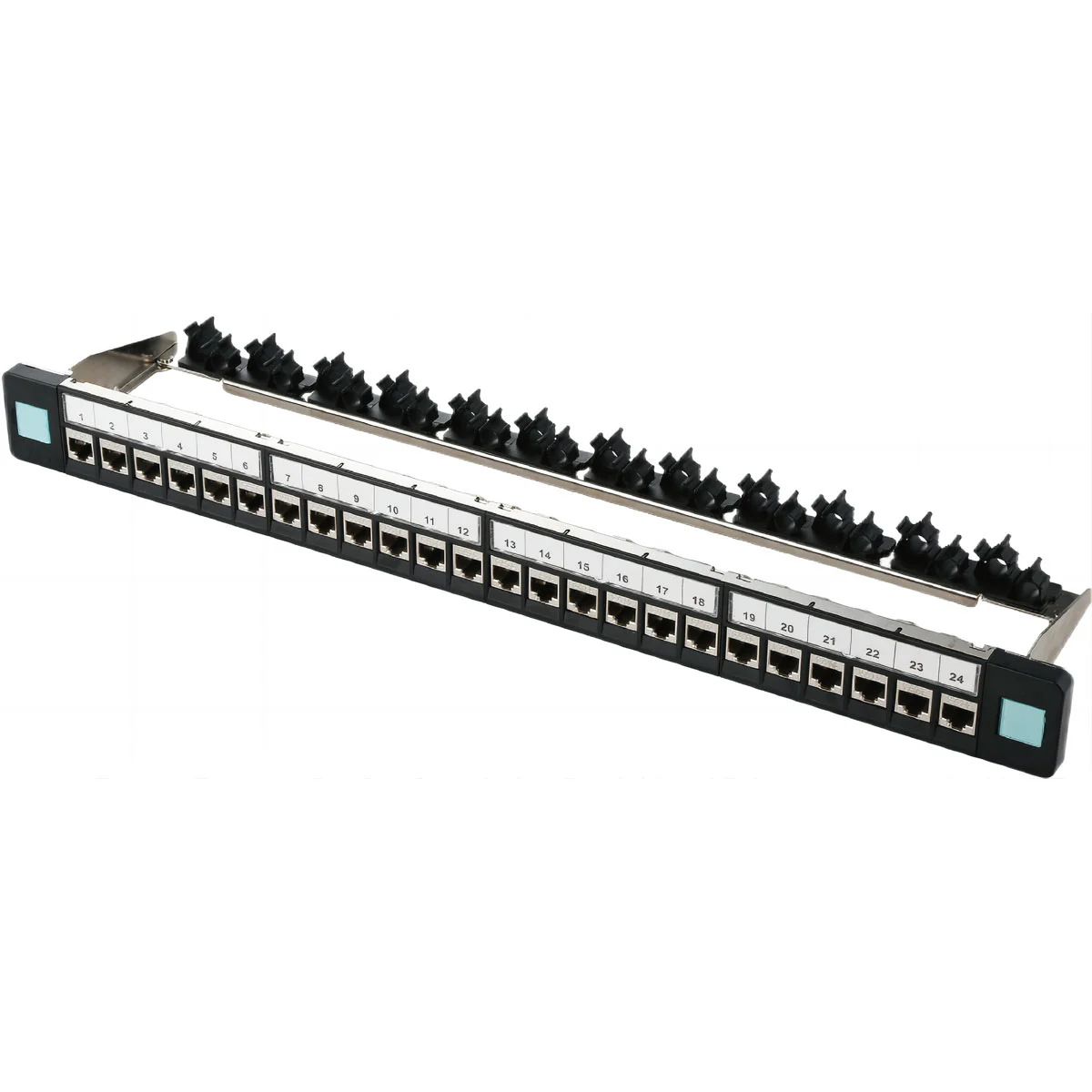

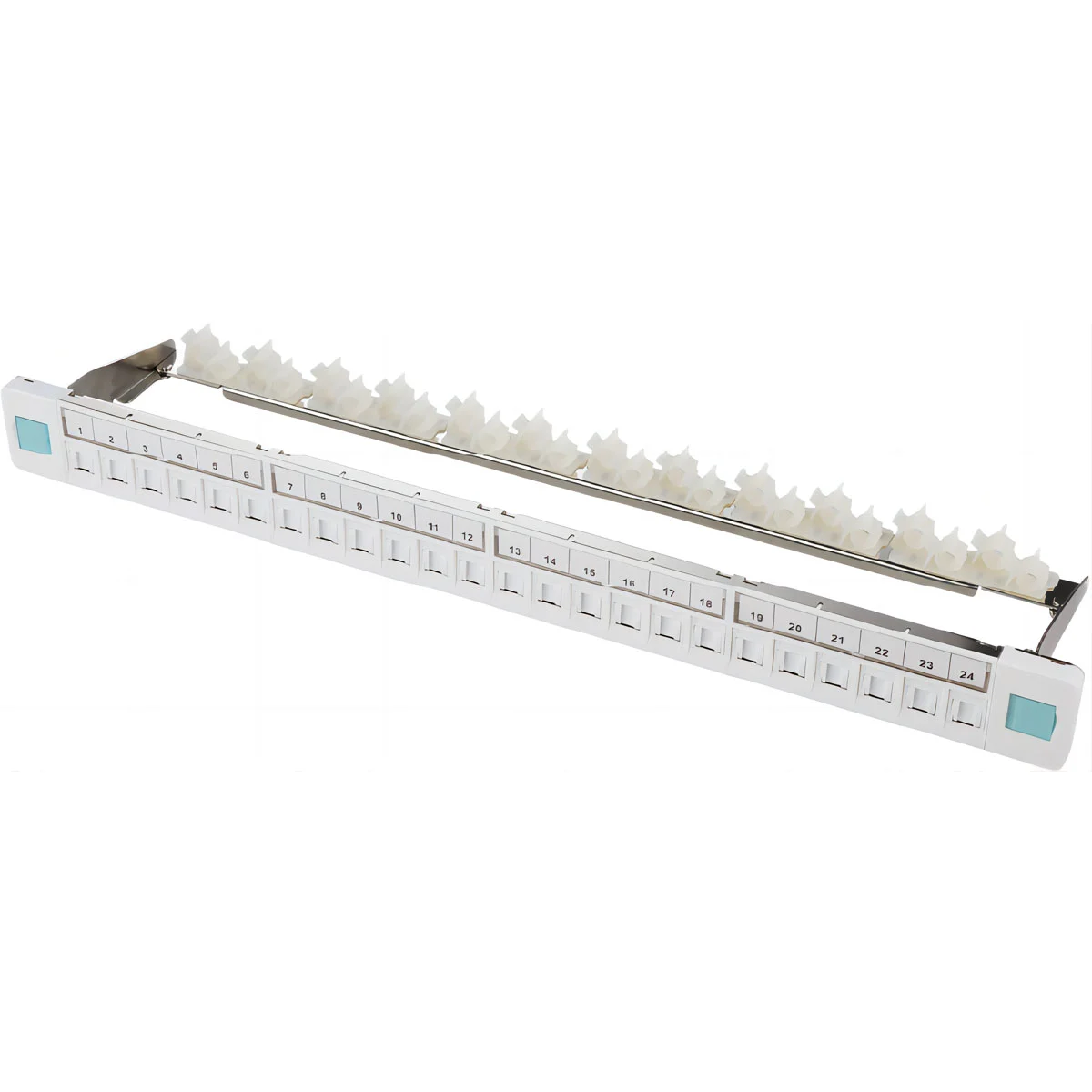

1.Ethernet Patch Panels: These are the most common type and are used for organizing Ethernet cables (Cat5e, Cat6, Cat6a, etc.). They feature RJ45 ports on the front.

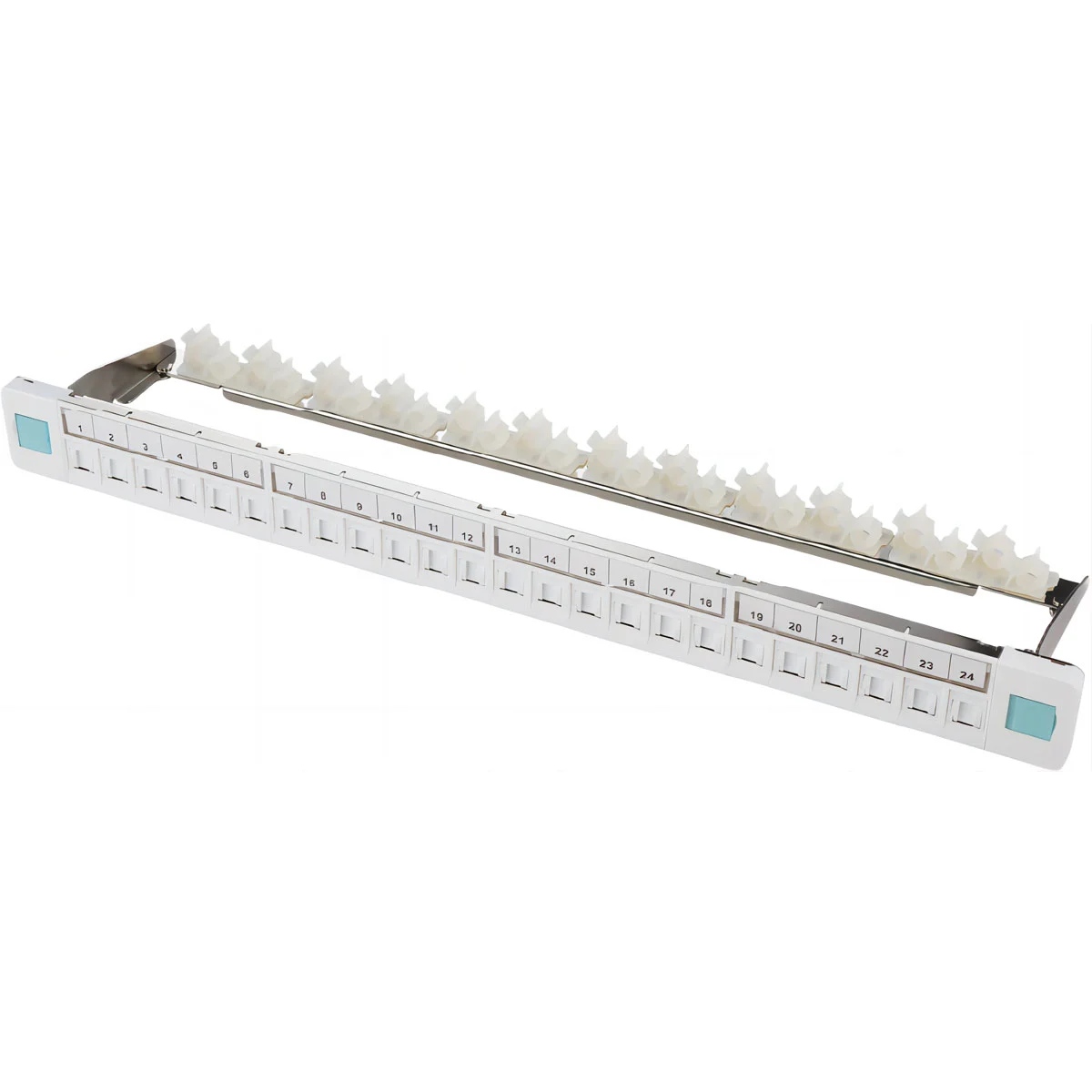

2.Fiber Optic Patch Panels: Used for managing fiber optic cables, these panels have ports for various types of fiber connectors such as LC, SC, ST, or MTP/MPO.
3.Audio/Video Patch Panels: Used in broadcasting and AV setups, these panels manage audio and video signal cables.
4.Coaxial Patch Panels: Used for managing coaxial cables, often in television and radio broadcasting.
1.Data Centers: Patch panels are extensively used in data centers to manage the vast number of network connections between servers, storage systems, and networking equipment.
2.Offices: In office environments, patch panels help in organizing the network infrastructure, making it easier to manage workstations, printers, and other networked devices.
3.Telecommunications: Telecom companies use patch panels to manage telephone lines and other communication circuits.
4.Broadcasting: Audio and video patch panels are used in broadcasting studios to manage signal routing between various equipment.
1)Cat5e Patch Panel: Designed for Cat5e cables, supporting data rates up to 1 Gbps.
2)Cat6 Patch Panel: Designed for Cat6 cables, supporting data rates up to 10 Gbps over shorter distances. Cat6 patch panels have stricter performance standards and better shielding to reduce crosstalk and interference.
While it is technically possible to mix different categories of cables (e.g., Cat5e and Cat6) on the same patch panel, it is not recommended. Mixing cable categories can lead to performance issues and make it harder to manage the network. It is best to use a patch panel that matches the category of the cables being used.
1)Cable Type: Match the patch panel to the type of cables (e.g., Cat5e, Cat6, fiber optic) used in your network.
2)Port Density: Choose a patch panel with enough ports to accommodate your current and future needs.
3)Mounting: Ensure the patch panel fits your rack or cabinet.
4)Application: Consider any specific requirements, such as PoE support or modularity.
