ADSS, All-dielectric Self-supporting Aerial Cable

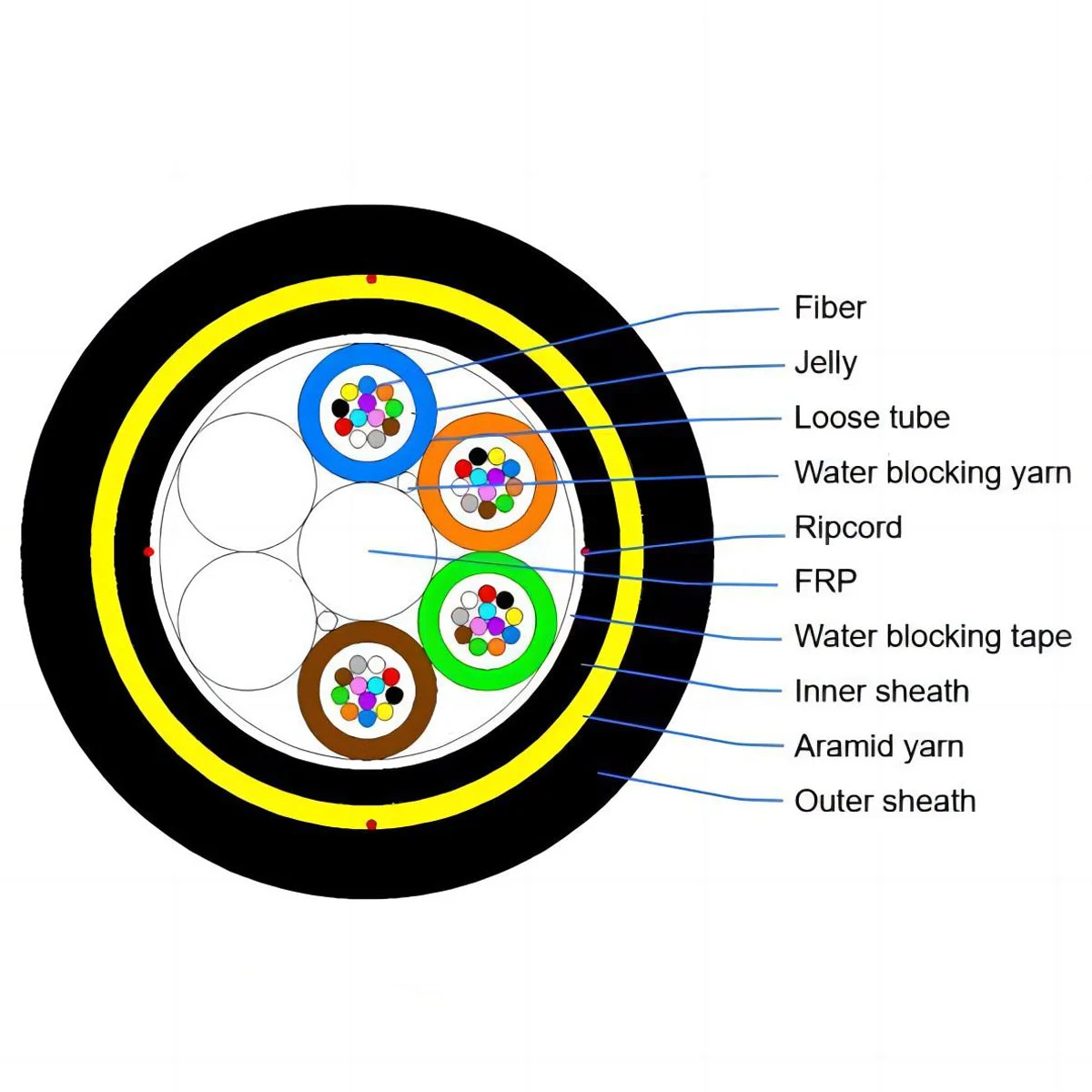

A loose tube is stranded in the ADSS cable. Fibers are inserted into the loose, high-modulus plastic tube. The tubes contain a chemical that blocks water. The tubes are wound into a small, spherical cable core around a fiber-reinforced polymer (FRP) that serves as a non-metallic central strength element.
Following the application of filling compound, the PE inner sheath is placed over the cable core. The PE sheath completes the cable after a stranded layer of aramid yarns is put over the inner sheath as a strength element. To prevent the cable from corroding electrically, the AT (anti-tracking) sheath is changed in certain situations.

Features of ADSS, All-dielectric Self-supporting Aerial Cable

Reliable moisture-proof and water-blocking performance was offered by every area.
The ideal optical fiber shielding is offered by special filling gel-filled loose tubes.huge span lengths; the longest span is more than a thousand meters.
Fiber reinforced plastic, or FRP, has a high Young's modulus and is a key component of strength.
The cable has strength components composed of glass or aramid yarns to enable self-support.
In extreme weather conditions, there is no tensile tension on the fiber.
Installation in induced voltage fields is possible with its unique PE/AT (anti-tracking) outer sheath.
A 30-year lifetime is made possible by strict workmanship and raw material management.

Fiber Number	Span (m)	Fibers per tube	Diameter (mm)	Weight (kg/km)	Mat (kN)	RTS (kN)	Allowable crush resistance (N/10cm)
2-36	100	6	12.7	131	4.4	11.0	2200
	200	6	12.9	136	6.4	16.0	2200
	300	6	13.2	143	9.6	24.0	2200
	400	6	13.5	450	12.2	30.6	2200
	500	6	13.9	158	15.6	39.0	2200
	600	6	14.3	166	19.2	48.0	2200
	700	6	14.5	174	22.0	55.0	2200
	800	6	14.8	179	24.8	62.0	2200
38-72	100	12	13.8	162	5.0	12.4	2200
	200	12	14.1	167	7.3	18.2	2200
	300	12	14.6	179	12.4	31.0	2200
	400	12	14.7	182	13.8	34.5	2200
	500	12	15	188	16.1	40.3	2200
	600	12	15.3	195	19.8	49.6	2200
	700	12	15.6	204	23.1	57.8	2200
	800	12	15.9	210	25.9	64.7	2200
74-96	100	12	15.9	212	10.1	25.2	2200
	200	12	16.3	221	14.7	36.8	2200
	300	12	16.8	228	17.0	42.6	2200
