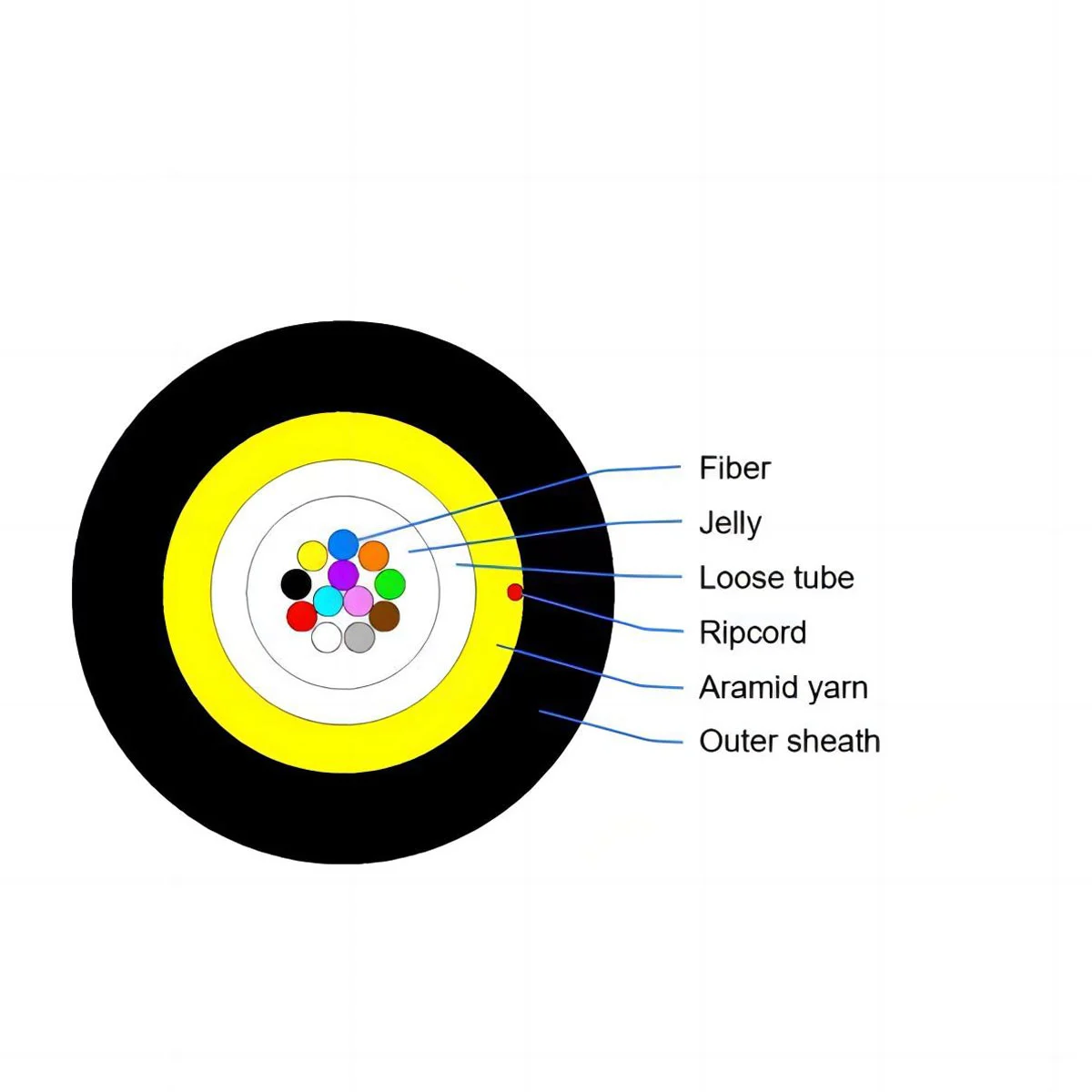

A loose, high-modulus plastic tube filled with tube filling material contains the optical fibers.
As a strength member, aramid yarns are positioned outside the loose tube, and a sheath is then extruded. This kind of cable is very useful for access networks with air-blowing structures.
Light weight, compact size, and high fiber density.
Air-blown installation is acceptable.
Outstanding temperature performance for applications requiring a range of temperatures.
Fiber number | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile (N） | Minimum Bending Radius (mm） | Allowable Crusl Resistant (N/10cm） | ||
Short term | Long term | Dynamic | Static | ||||
2～12 | 2.5 | 5.9 | 0.3G | 1G | 20D | 10D | 500 |
24 | 2.8 | 12.6 | 0.3G | 1G | 20D | 10D | 500 |
Special cables structures can be designed and manufactured on customer's request.
