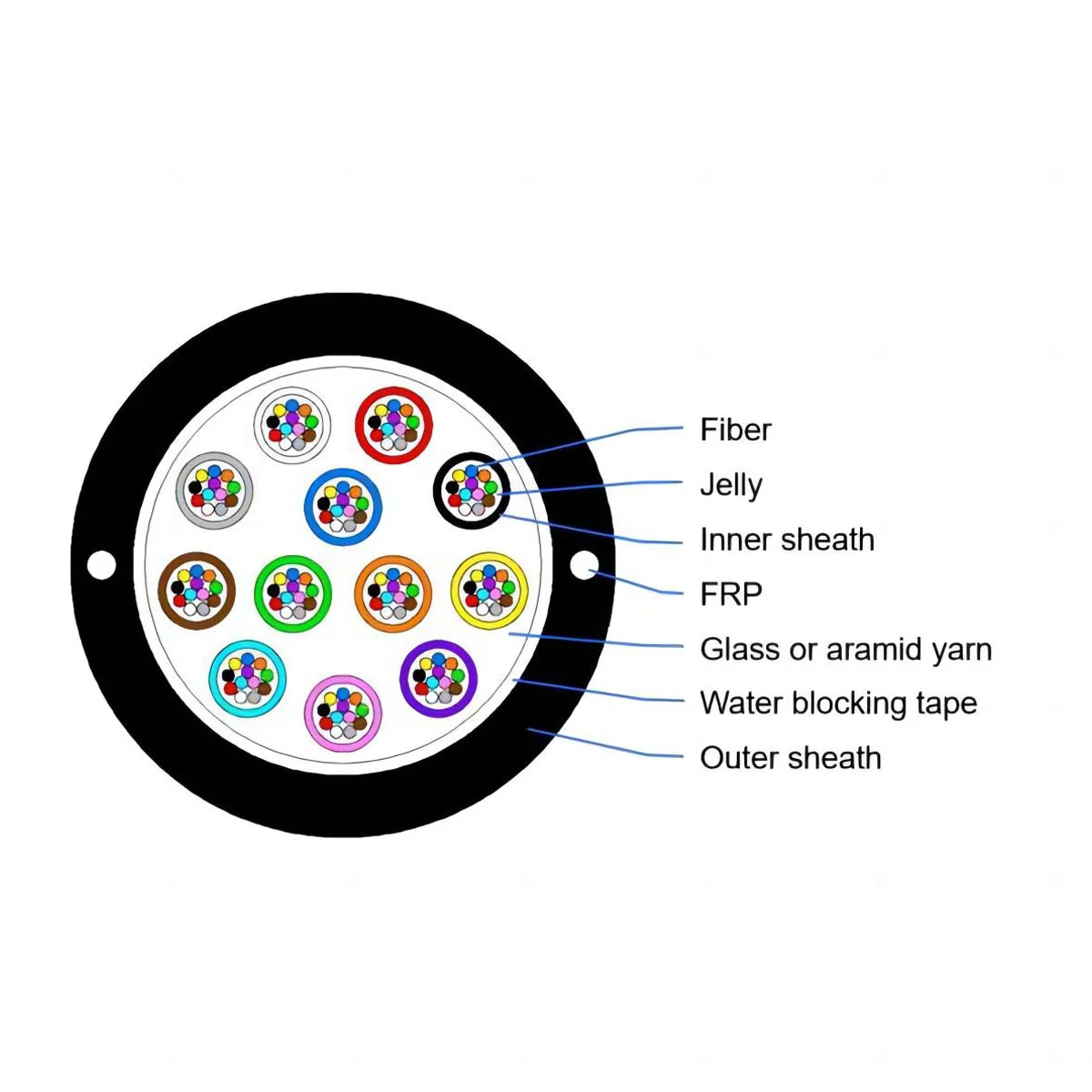

The fibers are arranged in a loose, flexible tube. There is a water-resistant filling component within the tube. strands of tubes together in a certain pitch.Additional strength members are made of high-strength materials, including glass yarn.
Two FRP parallels are positioned on either side of the core. The polyethylene sheath is extruded to offer UV protection outside the core and strength components.
High fiber density and small diameter.
Water blockage that is semi-dry.
The ideal cable structure.
The tube sheath is readily removed with the finger.
Preserving the duct's source.
FIBERS PER TUBE | CORES | CABLE DIAMETER (Appr.) | MAX TENSION | CABLE WEIGHT | OUTER COLOR |
12 | 12 | 8.4mm | 2200N | 54kg/km | Black |
12 | 24 | 8.8mm | 2200N | 59kg/km | Black |
12 | 36 | 9.1mm | 2200N | 64kg/km | Black |
12 | 48 | 9.5mm | 2200N | 67kg/km | Black |
12 | 72 | 10.2mm | 2200N | 77kg/km | Black |
12 | 144 | 11.8mm | 2700N | 104kg/km | Black |
12 | 288 | 14.5mm | 3000N | 150kg/km | Black |
