GYFTY, Non-metallic Strength Member Loose Tube Stranded Cable

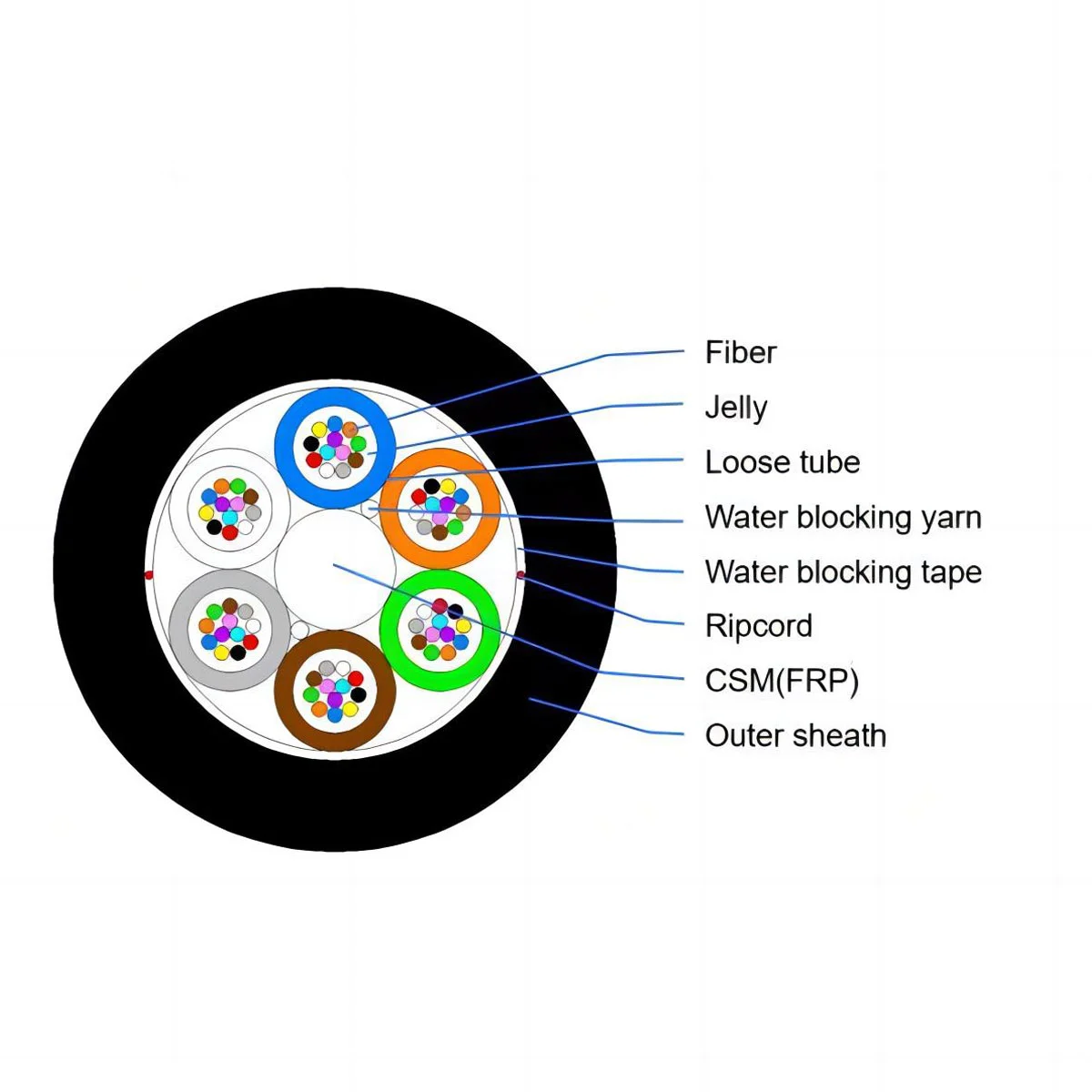

The fibers are arranged in a loose, high-modulus plastic tube. A water-resistant filling substance is used to fill the interstice on the inside and outside of the tubes. As a strength member, a fiber reinforced plastic rod (FRP), coated with polyethylene if needed, is positioned in the middle of the core.
To create a small, spherical cable core, tubers (and fillers) are stranded around the strength member. To create a cable, a layor polyethylene sheath is extruded around the cable core.

Features of GYFTY, Non-metallic Strength Member Loose Tube Stranded Cable

Good moisture-proof and water-resistant performance is provided by the full section water blocking structure.
Ideal optical fiber protection is provided by special filling gel-filled loose tubes.
A core strength member is a dielectric FRP rod with a high modulus.
It is simple to route the flexible buffer tubes in closures.
Outstanding temperature and mechanical performance.
Superior protection against UV rays, fungi, abrasions, and other outdoor elements is offered by jackets.
This dielectric structure is lightweight, quick to install, has strong electromagnetic resistance, and may be used in regions that are regularly lit or in electrical systems.
A 30-year lifetime is made possible by strict workmanship and raw material management.

Fiber count	Nominal diameter (mm)	Nominal weight (kg/km)	Max fiber per tube	NO.OF (Tubes +filler)	Allowable tensile load (N) (short term/long term)	Allowable crush resistance (N/10cm) (short term/long term)
2～36	10.2	85	6	6	1500/600	1000/300
38～72	11.1	100	12	6	1500/600	1000/300
74～96	12.6	130	12	8	1500/600	1000/300
98～120	14.1	162	12	10	1500/600	1000/300
122～144	15.9	204	12	12	1500/600	1000/300
146～216	15.9	205	12	18(2 layers)	1500/600	1000/300
>216	customized
