GYTY53, Metallic Strength Member Cable With Inner & Outer PE Sheath

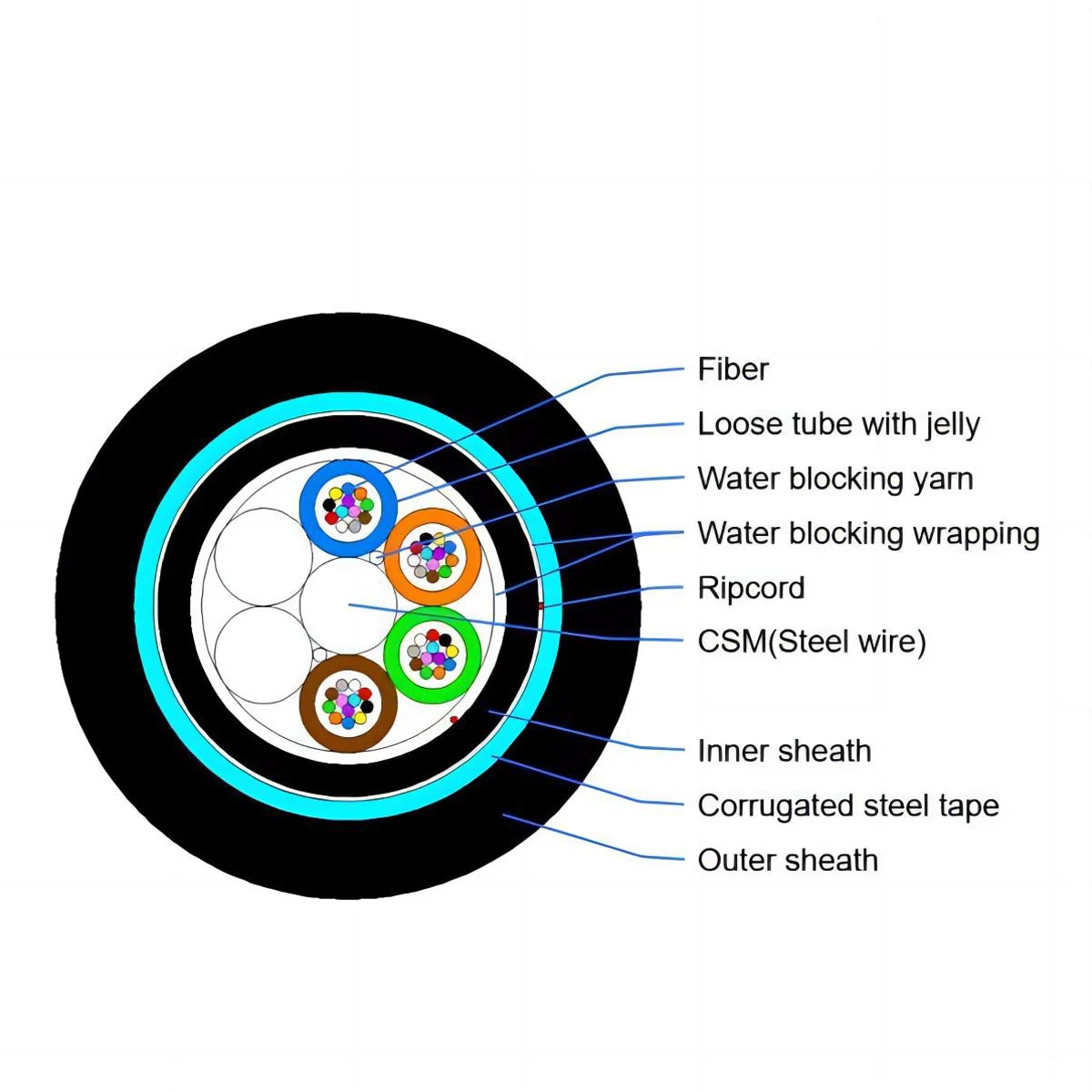

High modulus plastic tubers are used to hold the fibers in place. The tubes are filled with a substance that blocks water. The steel wire serves as the strength element in the middle of the core and can be coated with polyethylene if needed.
To create the cable core, tubes are stranded around the strength component. A polyethylene layer is extruded as the inner sheath. The PE outer sheath completes the cable after the PSP is placed longitudinally over the inner sheath.

Features of GYTY53, Metallic Strength Member Cable With Inner & Outer PE Sheath

Each and every water-blocking construction choice offers excellent moisture-proof and water-blocking performance.
Loose tubes filled with special filling gel offer ideal shielding for optical fibers.
Resistance to corrosion A core strength element made of high modulus phosphate steel wire.
A lifespan of more than 30 years is made possible by strict workmanship and raw material management.

Fiber count	Nominal diameter (mm)	Nominal weight (kg/km)	Max fiber per tube	NO.OF (Tubes +filler)	Allowable tensile load (N) (short term/long term)	Allowable crush resistance (N/10cm) (short term/long term)
2～36	12.7	173	6	7	3000/1000	3000/1000
38～72	13.9	211	12	6	3000/1000	3000/1000
74～96	15.5	251	12	8	3000/1000	3000/1000
98～120	17.2	299	12	10	3000/1000	3000/1000
122～144	18.8	345	12	12	3000/1000	3000/1000
>144	customized
