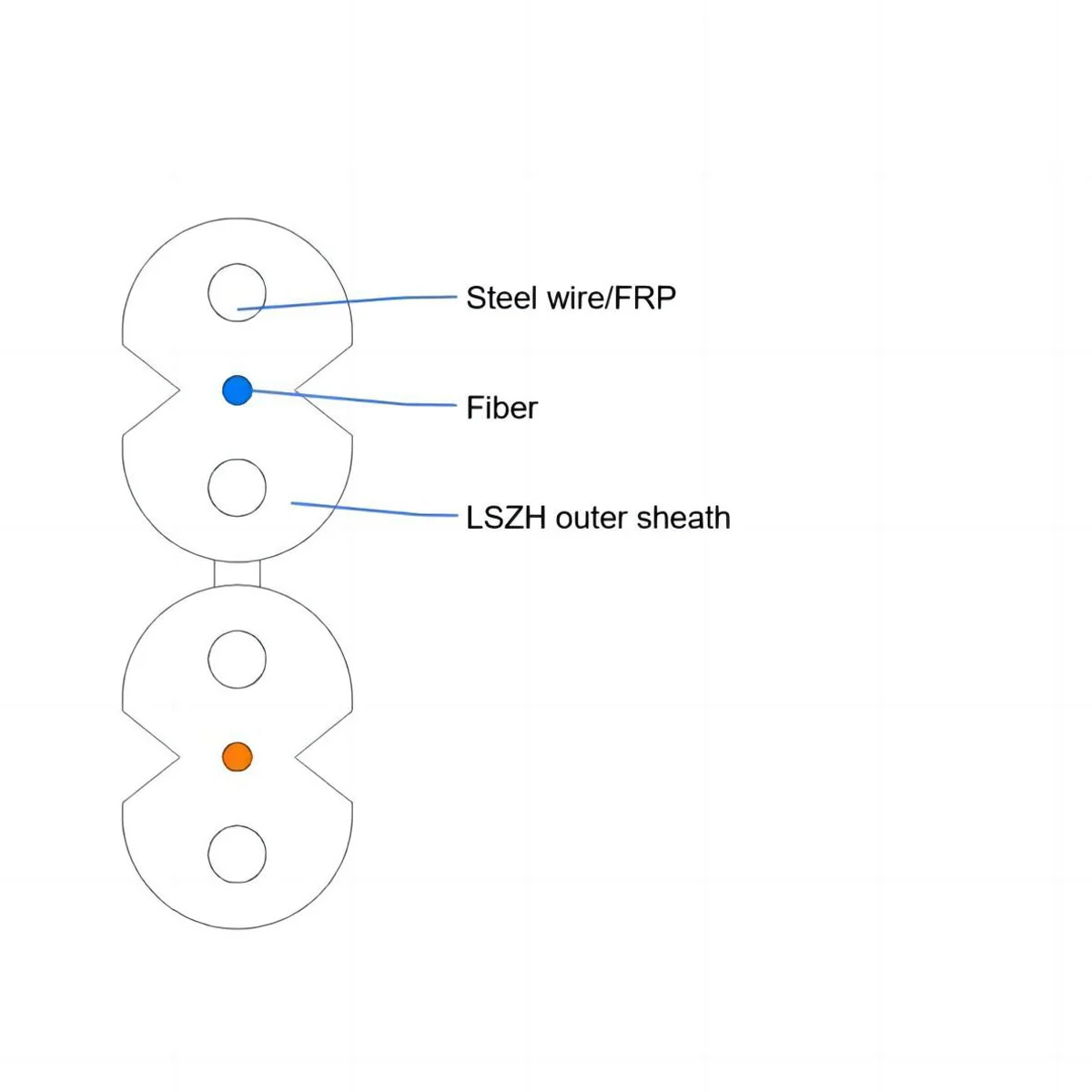

To create a bow-like unit, one insensitive fiber is positioned in the middle and on either side of two paralleled strength members. Additionally, two bow-type units that are paralleled are connected.
Able to be fired on the spot.
Simple installation and maintenance, easy to strip and splice.
Fiber with low bend sensitivity offers superior communication transmission properties and a large bandwidth.
Two parallel-strength members with a better cable construction offer superior crush resistance performance.
Independent bow-type cables with fibers placed in them that don't interfere with one another.
Environmentally friendly, low smoke, halogen-free flame-retardant sheath.
Spec | Outside diameter (mm) | Max. tensile load (N) | Crush resistant (N/10cm) | ||
Short term | Long term | Short term | Long term | ||
GJSPXH-2 | 2.0×3.0 -6.2 | 200 | 100 | 2200 | 1000 |
