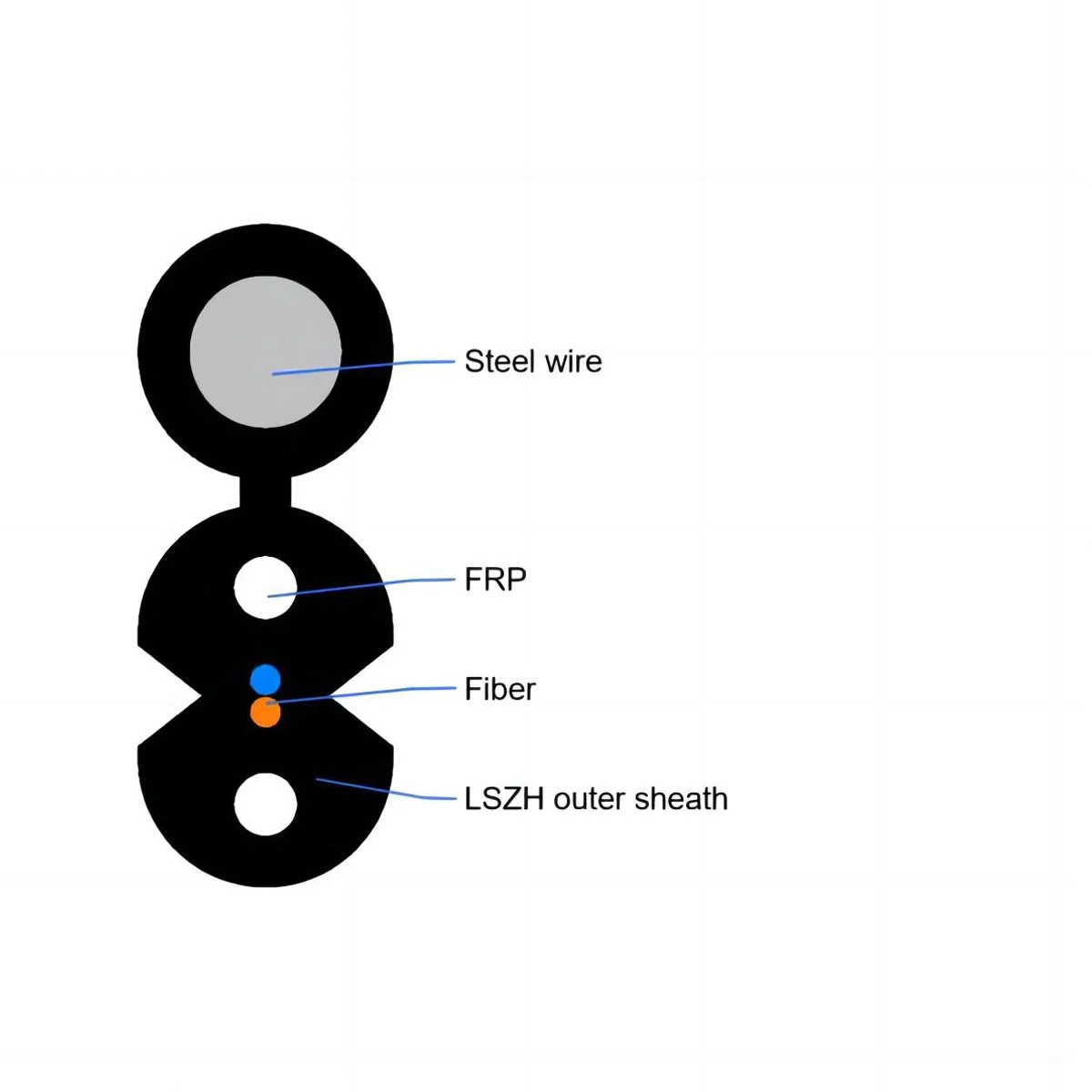

After placing one or more bend-insensitive fibers in the middle and on each side of two paralleled strength members, the flame-retardant jacket is extruded.
Capable of being terminated on-site.
Simple installation and maintenance, as well as ease of stripping and splicing.
Excellent communication transmission properties and a large bandwidth are provided by low-bend-sensitivity fiber.
Superior crush resistance performance is provided by a better cable construction with two parallel strength members.
Low smoke, halogen-free, environmentally friendly flame-retardant sheath.
Spec | Outside diameter (mm) | Max. tensile load (N) | Crush resistant (N/10cm) | ||
Short term | Long term | Short term | Long term | ||
GJXFH(V)-1/2/4 | 2.0×3.0 | 80 | 40 | 1000 | 500 |
