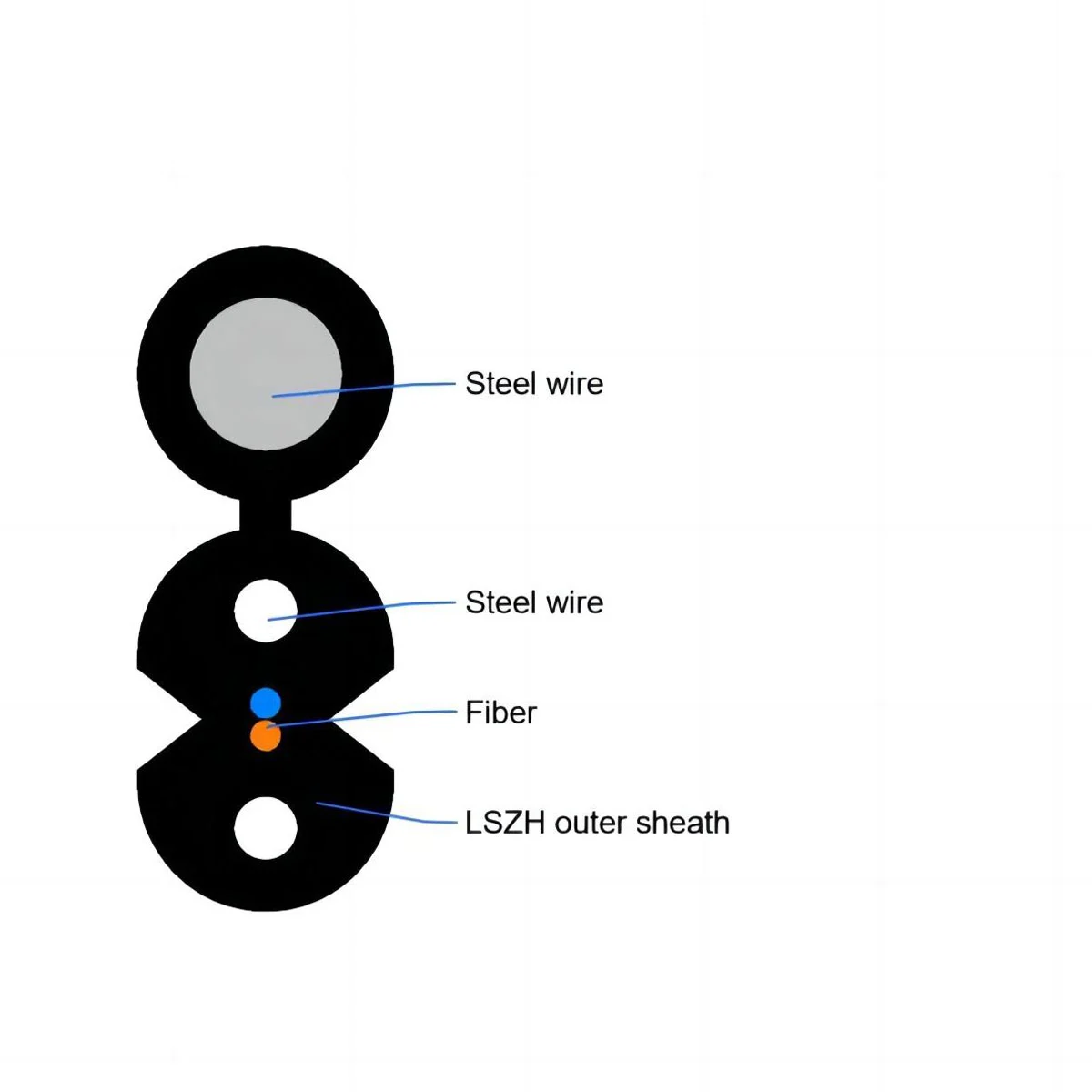

After positioning the optical fiber in the middle, two paralleled fiber reinforced strength members are positioned on either side of the fiber, steel wire is added as an extra strength member, and a flame-retardant jacket is extruded.
Simple installation and maintenance, easy to strip and splice, and able to be terminated on-site.
Excellent communication transmission properties and a large bandwidth are provided by low-bend-sensitivity fiber.
Superior crush resistance performance is provided by a better cable construction with two parallel strength members.
Good tensile strength performance is ensured by steel wire, an extra strength element.
Low smoke, halogen-free, environmentally friendly flame-retardant sheath.
Model | Outside diameter (mm) | Max. tensile load (N) | Crush resistant (N/10cm) | ||
Short term | Long term | Short term | Long term | ||
GJYXCH-1/2/4 | 2.0×3.0 - 5.3 | 600 | 300 | 2200 | 1000 |
